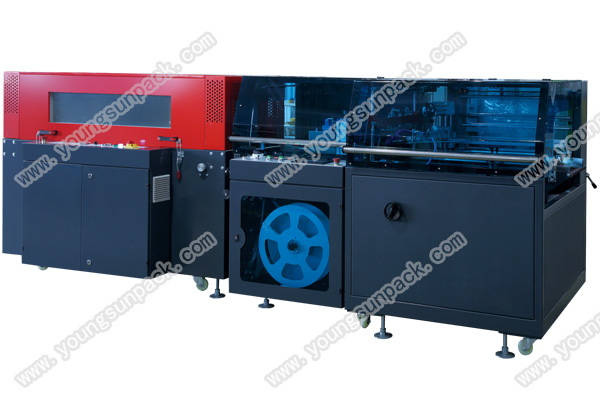

YS-ZB-5B Shrink Wrapper The continuous-sealing wrappers
Techical Parameters YS-ZB-5B

TUNNEL

(FT-4525)

Power supply 3P 380V 50/60hz 4kw 380v 3p,6.5kw
Overall machine dimensions W 1400 x L 2000 x H 1300mm W 1000 x L 1800x H 1320mm
Working plate height(on stand)

850mm±50mm(customer made)

Machine weight

N.W 770kg

G.W 810kg

N.W 560kg

G.W 610KG

Maximum sealing dimensions L∞mm x W 400mm \
Maximum product height 150mm \
Minimum film width 200mm \
Maximum film width 500mm \
Compressed air pressure 5-6kg/cm² \
Speed 40-45psc/min 0-18m/min
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"
*notes:Technical data subject to variations without prior notice Output depends on the operator and type of the package
Inquiry this product
