Key:Conveyor,Delivery roll,Plastic chain conveyor,Roller Power conveyors,Chain Power conveyors
- • Occupy small space,easy flexible;Easy change transport orientation,canachieve max.180 degree.
- • S type flexible conveyor,every unit has 8 Rollers,every unit can use alone ,alse can associate with some units,assemble easily.
- • S type flexible conveyor,easy flexible,the length stretch and retract has 3 times difference.
- • S type flexible conveyor,easy change transport orientation,can achieve max.180 degree.

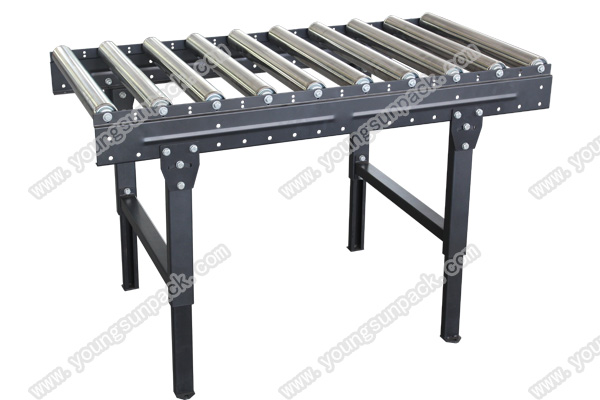

| Idle roller conveyor | |
| Specifications | |
| Rollers | Φ25mm.Φ32mm.Φ42mm.Φ50mm |
| Axles | Φ10mm.Φ12mm |
| Axle pitch | 30,60,90,120mm |
| Width | 300,400,500,600mm. |
| Length | 250,500,750,1000,1500,2000,2500mm. |
| Height | (450-650)mm or (600-850)mm |
| Load | (50-100)kg/m |

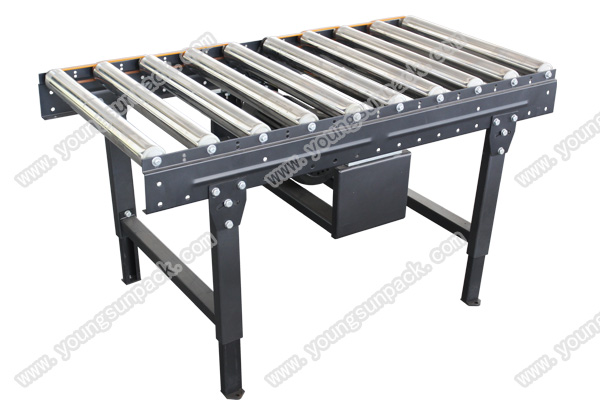

| Power roller conveyor | |
| Specifications | |
| Rollers | Φ32mm.Φ42mm.Φ50mm |
| Axles | Φ10mm |
| Axle pitch | 60,90,120mm |
| Power | 0.2KW or 0.4kw |
| Speed Standare | 20:1=10m/min.Other Gearings available.Inverter can be used to control speed |
| Driving mode | Multi wedge belt coupled driving |
| Width | 300,400,500,600mm. |
| Length | 500,750,1000,1500,2000,2500mm. |
| Height | (450-650)mm or (600-850)mm |
| Load | (50-75)kg/m |
| Idle roller conveyor | |
| Specifications | |
| Rollers | Φ25mm.Φ32mm.Φ42mm.Φ50mm |
| Axles | Φ10mm.Φ12mm |
| Axle pitch | 30,60,90,120mm |
| Width | 300,400,500,600mm. |
| Length | 250,500,750,1000,1500,2000,2500mm. |
| Height | (450-650)mm or (600-850)mm |
| Load | (50-100)kg/m |
Belt conveyor for weighing | |
| Specifications | |
Belt width |
500, mm. |
Height | 500, 550,650,750（can be customized） |
Length |
700mm. |
| Power | 0.25KW |
| Speed Standare | Standard 7.6:1 = 36 m/min.Other Gearings available. Inverter can be used to control speed. |
Weighing range |
0.5-30KG |
| Width | 300,400,500,600mm. |
Accuracy |
≥±20g |
Max pass speed |
50pcs/min. |
| Belt conveyor | |
| Specifications | |
| Rollers | Ø 60mm |
Width | 300. 400, 500, mm |
Height |
450, 500, 550,650,750（can be customized） |
Length |
1000, 1500, 2000, 2500 3000mm |
Load |
30kg |
Power |
0.4KW |
Speed | Standard 20:1 = 40 m/min.Other Gearings available. Inverter can be used to control speed. |
Speed separating belt conveyor | |
| Specifications | |
| Rollers | Ø 93mm |
Width |
580, 680,780 mm |
Height |
450, 500, 550,650,750（can be customized） |
Length |
1380 mm.1730 mm. |
Load |
30kg |
Power |
0.4KW |
Speed |
Standard 20:1. Speed =20m/min. Other Gearings available. Inverter can be used to control speed |
Plate chain conveyor with speed separating device | |
| Specifications | |
Width |
500, 600,700,800 mm. |
Height |
450, 500, 550,650,750（can be customized） |
Length |
1400mm |
Power |
0.37KW+0.37KW |
Speed |
Standard 20:1 = 36m/min. Inverters control the speed. |
Angle |
90°an pass without turning |
Max pass speed |
50pcs/min. |

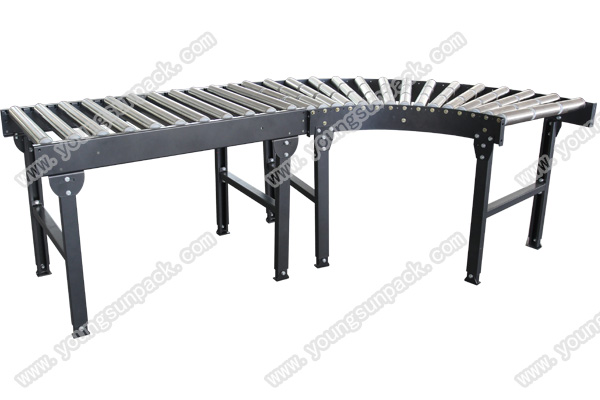

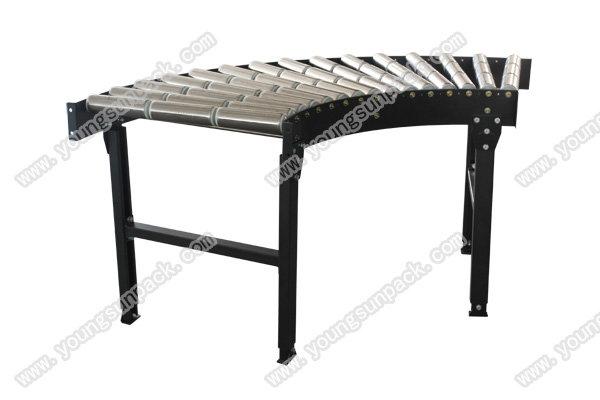

| Curved idle roller conveyor | |
| Specifications | |
| Rollers | Φ50mm |
| Axles | Φ10mm.Φ12mm |
| Angle | 30°,60° and 90° |
| Width | 300,400,500,600mm. |
| Height | (450-650)mm or (600-850)mm |
| Curved conveyor with wheels | |
| Specifications | |
| Rollers | Φ20mm |
| Axles | Φ10mm |
| Angle | 180° |
| Width | 300,400,500,600mm. |
| Height | (450-650)mm or (600-850)mm |

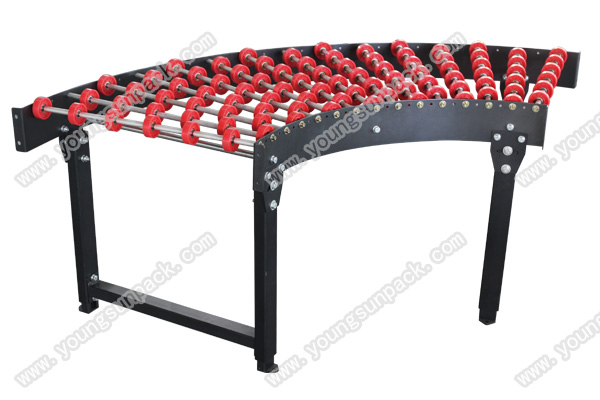

| Curved conveyor with wheels | |
| Specifications | |
| Rollers | Φ48mm |
| Axles | Φ8mm |
| Angle | 30°,60° and 90° |
| Width | 300,400,500,600mm. |
| Height | (450-650)mm or (600-850)mm |

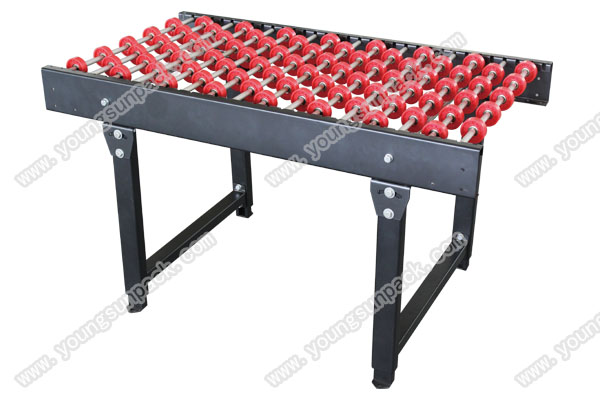

| Idle conveyor with wheels | |
| Specifications | |
| Rollers | Φ48mm |
| Axles | Φ8mm |
| Axle pitch | 60,90mm |
| Width | 300,400,500,600mm. |
| Height | (450-650)mm or (600-850)mm |
