Key: Labeling machine,labeling equipment
Youngsun company has been specially engaged in design,production and sales of manual, semi-automatic and full-automatic labeling machines since 1992,with a complete series divided into normal and special kinds.
These products are applied to various operations such as sticking a label on plane, post surface, single side or multi-sides of a package, sticking labels covering part or all of the surface of a cylinder, or sticking on sunken locations and at edges or corners.
Now Yongchuang can offer simple and economical solutions in China according to your requirements.
Machine function
The machine was controlled by PLC, whose design refers to France technology. The main accessories are purchased from Taiwan or overseas brand which have logical design, harmonious movement, steady capability, and also have not only label odd but also dual stick-label ability, you will find they are convenient, exact. And even label, could used in different spec circinal bottles and different dimension label.
Labeling Machine Total：9products

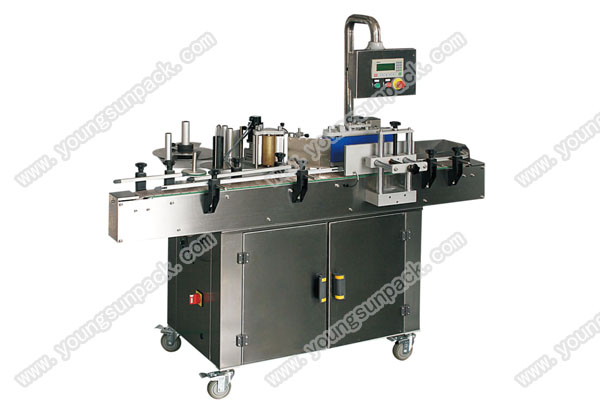

| A2000 Labeling Machine | ||
| It can stick 1 -2 labels on round container at the same time Model | ||
| Model | A2000 | |
| Power supply | IP 220V 50Hz 400W | |
| Air pressure | 2-5kg/cm2 | |
| Applicable container range | Height 40-200 mm, Diameter￠25-100 mm | |
| （≥￠100mm need to customize） | ||
| Applicable material | adhesive sticker | |
| Applicable label range | L(15-300)mm x H(15-120)mm | |
| Space between labels | ≥3mm | |
| Lable scroll | Inner dia￠76mm，Outer dia￠280mm | |
| Direction of label scroll | clockwise | |
| Labeling speed： | ||
| One label | 0-25pcs/min（depend on the bottle size and the Label length） | |
| Two labels | 0-15pcs/min（depend on the bottle size and the Label length） | |
| Labeling precision： | ||
| One label | 土 1 mm (except container error) | |
| Two labels | 土 1.5 mm (except container error) | |
| Table height | 950mm | |
| Machine dimension | LI 800mmxWl 1 OOmmxHl 700mm | |
| AB2000 Labeling Machine | ||
| It can label for round bottles(which can be conveyed vertically) or on side surface of other packings | ||
| Model | AB2000 | |
| Power supply | IP 220V 50HZ750W | |
| Air pressure | 2-5 kg/cm 2 | |
| Applicable container height | 50-300mm(3:1 ratio for height and diameter) | |
| Applicable container diameter | ￠25-100mm(>￠100mm need to customize) | |
| Applicable label | adhesive sticker(transparent and special stickers need to customize) | |
| Applicable label range | L(1 5-250)mmxH(≤120)mm | |
| Space between labels | ≥3mm | |
| Label scroll | 土 1 mm(except container error) | |
| Table height | 950 mm | |
| Machine dimension | L1800mmxW1100mmxH1700mm | |
| Machine weight | 250kg | |
| AC2000 Automatic Labeling Machine | ||
| This model is designed for labeling cylindrical container which is difficult to stand(usually diameter 10-20mm, length 25-95mm);if the diameter is more than 20mm, it will be usable to make slight modification on the existing basis of the machine | ||
| Model | AC2000 | |
| Power supply | 1PAC220V50/60HZ750W | |
| Air pressure | 2-5 kg/cm2 | |
| Applicable container diameter | ￠10-￠20mm(need to customize if out of range） | |
| Applicable container length | 25-95mm(need to customize if out of range) | |
| Applicable material | adhesive sticker | |
| Applicable label range | L(25-70)xH(20-75)mm | |
| Space between labels | ≥4mm | |
| Label scroll | Inner dia 76mm, Outer dia 280mm | |
| Direction of label scroll | clockwise | |
| Labeling speed | 0-200bottles/min(depend on the length) | |
| Labeling precision | ±0.5mm(except container error) | |
| Table height | 900mm | |
| Machine dimension | L2000mmxW700mmxH1650mm | |
| Machine weight | 250kg | |

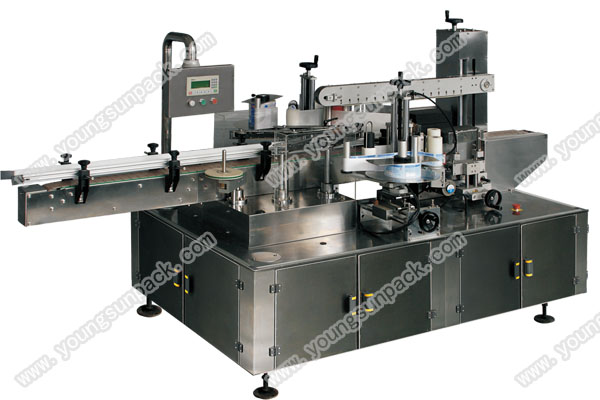

| B2000 Automatic Labeling Machine | ||
| Can pack the front and back of the thing to glue two labels at the same time in flat surface or ovals | ||
| Model | B2000 | |
| Power supply | 1P 220V 50/60Hz 600W | |
| Applied material | Undried glue lable | |
| Lable size | L(15-300)mm x H(15-130)mm | |
| Package dimension | Dia ￠25~￠120; H(40~300)mm | |
| Label speed | 0~120pcs/min | |
| Optional | Code printer | |

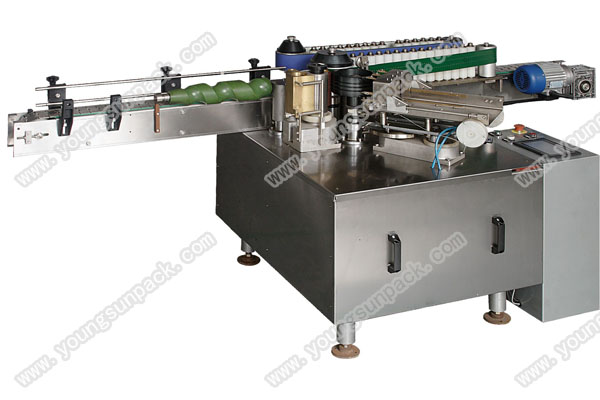

| 50JHT Liner Paste Labeling Machine | ||
| This model is designed for labeling square Conrainer or cylindrical container（usually diameter￠50~￠120mm）;for other abnormity container,it willBe usable to make slight modification on the existing Basis of the machine | ||
| Model | 50JHT | |
| Power supply | 3PAC380V 50/60HZ 1.5KW | |
| Air pressure | 2-5 kg/cm2 | |
| Applicable container | label square or cylindrical container on theside surface | |
| Applicable container range | diameter￠50- ￠120mm, H50-320mm | |
| Applicable label range | L110-200mmxH40-1 10mm | |
| Applicable material | paste/glue | |
| Label capacity | 500pcs | |
| Labeling speed | 40-120pcs/min | |
| Labeling precision | ±2mm（except container error) | |
| Table height | 850±50mm(customizable) | |
| Machine dimension | L2500mmxW1100mmxHl1100mm | |
| Machine weight | 300kg | |

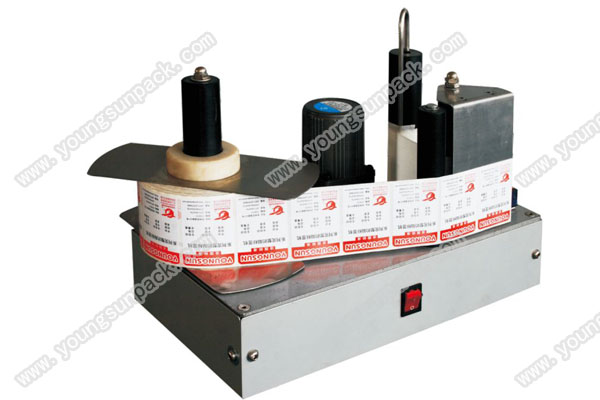

| B72 Label Allotter | ||
| Model | B72 | |
| Power supply | 1PAC220V50HZ 15W | |
| Applicable material | adhesive sticker | |
| Applicable label range | L110-200mmxH25-150mm | |
| Label scroll diameter | ||
| Machine dimension | L480xW220xH300 | |
| Machine weight | 15kg | |
| Features of the machine | ?Compact structure, reliable function, convenient operation, easy maintenance | |
| ?Smart body, small size, to occupy a little space | ||
| Working noise | ≤75DB | |
| Environmental condition | Humidity≤98%，Temperature20-40℃ | |
| CA2000 Automatic Labeling Machine | ||
| Model | CA2000 | |
| Power supply | 1P 220V 50HZ 100W | |
| Air pressure | 2-5 kg/cm2 | |
| Applicable container height | 1-300mm | |
| Applicable material | adhesive sticker | |
| Applicable label range | L(15-300)mmxH(l 5-120)mm | |
| (>120mm, need written notice) mm | ||
| Space between labels | ≥3mm | |
| Label scroll | Inner dia ￠76mm, Outer dia ￠280mm | |
| Direction of label scroll | clockwise | |
| Labeling type | on top surface | |
| Labeling speed | 15m/min | |
| Labeling precision | ±2mm(except container error) | |
| Machine dimension | L1300mmxW800mmxH1500mm | |
| Machine weight | 100kg | |

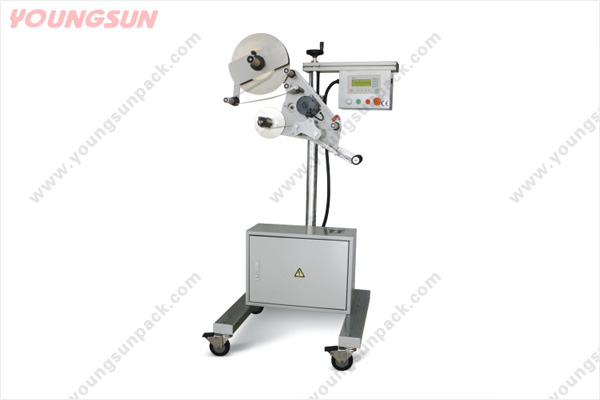

| CB2000 Labeling Machine | ||
| This model is used for labeling container on top surface or side surface (please indicate when order) | ||
| Model | CB2000 | |
| Power supply | 1P 220V 50/60HZ 100W | |
| Air pressure | 2-5kg/cm2 | |
| Applicable container range | L(20-300)mmxW(15-120)mm, customizable for | |
| special requirement | ||
| Applicable material | adhesive sticker | |
| Applicable label range | L(15-300)mmxH(10-120)mm(>120mm, need written notice), customizable for special requirement | |
| Space between labels | ≥3mm | |
| Label scroll | Inner dia ￠76mm, Outer dia ￠280mm | |
| Direction of label scroll | clockwise | |
| Labeling speed | 15m/min | |
| Labeling precision | < ±2mm(except container error) | |
| Machine dimension | L700mmxW700mmxH1650mm | |
| Machine weight | 150kg | |
| B76 Semi-automatic Labeling Machine | ||
| Model | B76 | |
| Power supply | 1PAC220/110V 50HZ 200W | |
| Applicable container | label for round container on side surface | |
| Applicable container range | diameter ￠45- ￠110mm, height 40-350mm | |
| Applicable material | adhesive sticker | |
| Applicable label range | L15-350mmxH15-130mm | |
| Space between labels | ≥3 mm | |
| Label scroll | Inner dia ￠40-76mm，0uter dia< ￠235mm | |
| Labeling speed | 0-50pcs/min | |
| Height of the container location | 530mm | |
| Machine dimension | L530m mxW600mmxH450mm | |
| Machine weight | 36kg | |
