    Technical characteristics and performances have been refined and improved by YOUNGSUN, according to years in the pallet packaging machinery manufacturing experience. All of the using materials are of high quality and the high technical standards for all mechanical and electronic components merge with highly efficient and precise assembling and testing procedures; this leads to the high performance production, safe and durable products. ROTOPLAT stretch wrapping machines have always been synonym to reliability, easy use and maintenance, and most of all, to strict compliance with safety rules and standards.
Wrapping machine Total：22 products
MH-FG-1000A
zoom Click

MH-FG-1000A Mechanical Stretch and Automatic Pallet Stretch Wrapper

Soft start/stop, turntable automatic home position, easy operation, Optoelectronic switch that automatically measure the height of goods, adopt the Europe technology for anti-tension, confirm the speed of lifting motor.

*Power voltage:

1/3 P,AC 220/380V,50/60 HZ

* Turntable Speed

0~10 prm

*Turntable Dia.

Φ 1500mm

*Mast height

H2400mm

*Packaging material:

 width≤500 mm,out dia. ≤Φ280 mmLLDPE

*capacity:

1500kg;

*Max  height

2000 mm

*optional attached:

①.Ramp

*Noise :

≤75 DB

*Surrounding:

Humidity ≤98%temperature -10℃～40℃

*Lubricating material:

Common lubricating grease



Inquiry this product

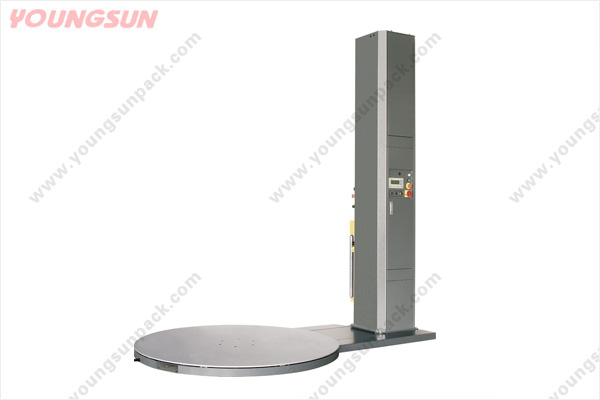

MH-FG-2000A
zoom Click

MH-FG-2000A  Mechanical Stretch
MH-FG-2000B  Power pre-Stretch

Automatic Pallet Stretch Wrapper

Soft start/stop, turntable home position, adopt PLC and transducer control, reliable  performance, easy operation, and optoelectronic switch automatic measure goods height.

*Power Voltage:

1 P  AC 220/110V  50/60 Hz

Speed turntable

0～10 r/m

*Turntable Dia.

Φ 1500mm （optionalΦ1650/Φ1800/Φ2000/Φ2200）

*Mast height

H2400mm （optional 2000/2700/3000/3200/3400）

*Film

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

Φ 1500 mm ：1500 kg;  ≥ Φ 1650 mm ：2000 kg ；

*Max height

mast height minus 400mm

*optional :

①.slope ② extraposition control box ③.electromagnetic brake

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃～40℃

*Lubricate material

Common lubricating grease
Inquiry this product

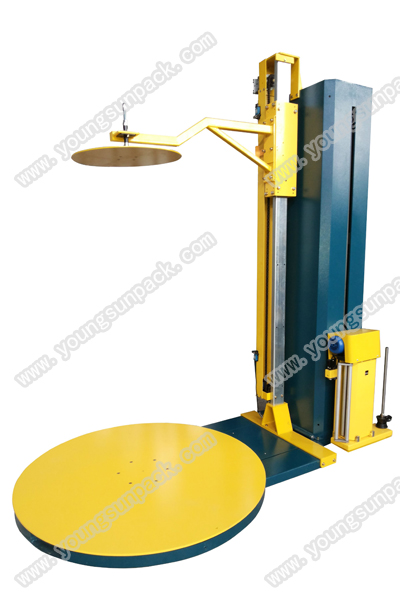

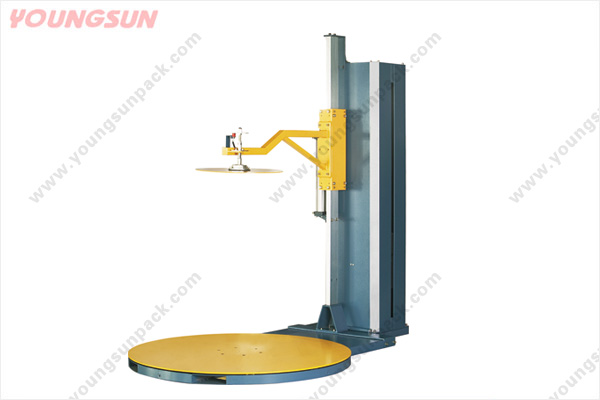

MH-FG-2000AC-A
zoom Click

MH-FG-2000AC-A  Mechanical Stretch
MH-FG-2000BC-A  Power pre-Stretch

With Top-presser ;Automatic Pallet Stretch Wrapper

Soft start/stop, turntable automatic home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height, suit light or unable fixed products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Turntable speed

0～10r/min

* turntable Dia.

Φ 1500mm (optionalΦ1650/Φ1800/Φ2000/Φ2200)

*Press plate Dia:

Φ450 mm（optional Φ600 /Φ800）

*Mast height

2400mm (optional 2000/2700/3000/3200/3400)

*Packing film:

LLDPE film, width<=500mm,out dia.<=280mm

*Capacity:

Φ 1500 mm ：1500 kg;  ≥ Φ 1650 mm ：2000 kg

*Max height

The mast height minius 400mm

Top-press range：

500 mm ～mast height minius 400mm

*Choosable range

①.slope, ②.extraposition control box, ③.electromagnetic breake

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃～40℃
*Optional ①Ramp ② extraposition Control Box ③electromagnetic brake

*Lubricant material:

common lubricating grease
Inquiry this product

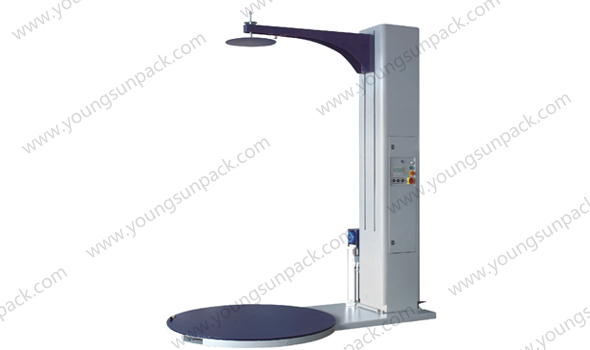

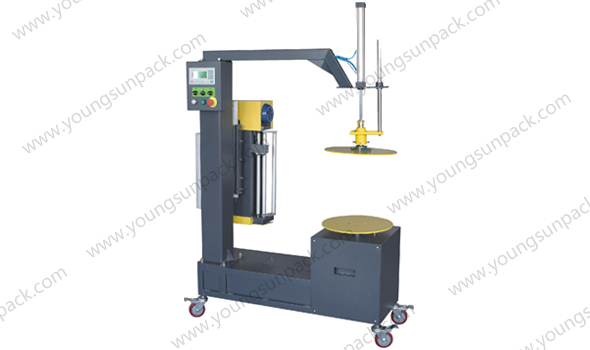

MH-FG-2000BC
zoom Click

MH-FG-2000AC Mechanical Stretch
MH-FG-2000BC Power pre-Stretch

With Top-presser ;Automatic Pallet Stretch Wrapper

Soft start/stop, turntable automatic home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height, suit light or unable fixed products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air pressure

0.4～0.6 MPa

*Speed of turntable

0～10r/min

*Dia.of turntable

Φ 1500mm (optionalΦ1650/Φ1800/Φ2000/Φ2200)

*Dia.of top-press plate

Φ450 mm(optionalΦ600 /Φ800)

*Mast height

H2400mm (optional 2000/2700/3000/3200/3400)

*Material:

LLDPE  film, width<=500mm,out diameter<=280mm

*Capacity

Φ1500 mm:1500 kg;≥ Φ 1650 mm :2000 kg

Max  height

=mast height-400mm

*Top-press travel :

   500mm

*Top-press range

1200mm～mast height-400mm,

Noise

≤75DB

Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Optional

①Ramp ② extraposition Control Box ③electromagnetic brake
Inquiry this product

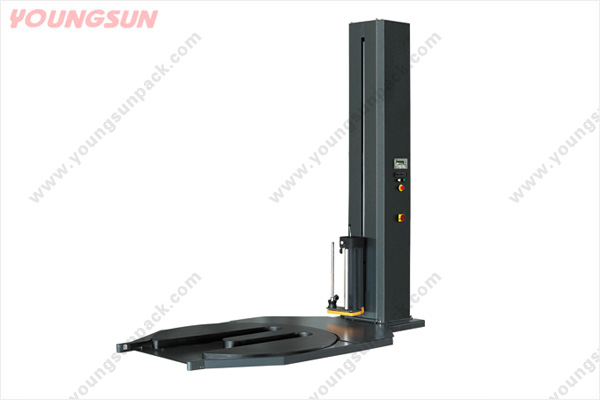

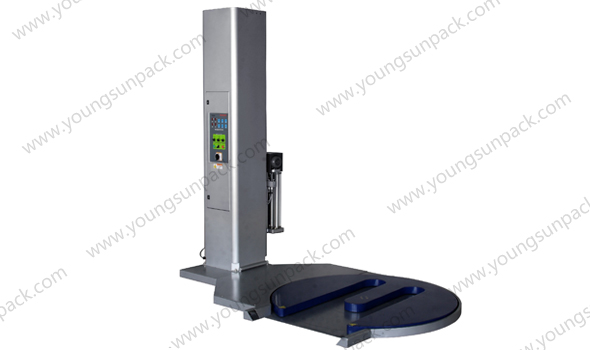

MH-FG-2000C
zoom Click

MH-FG-2000AW-90°/270° W type Mechanical Stretch
MH-FG-2000BW-90°/270° W type Power pre-Stretch

Automatic Pallet Stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Speed of turntable

0～10r/min

*Dia.of turntable

Φ 1500mm

*Mast height

H2400mm （optional 2000/2700/3000/3200/3400）

*Material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1000 kg;

*Max wrapping height

mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease
Inquiry this product
MH-FG-2000AW-180°
zoom Click

MH-FG-2000AW-180 °W type  Mechanical Stretch
MH-FG-2000BW-180 °W type  Power pre-Stretch

Automatic Pallet Stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Speed of turntable

0～10r/min

*Dia.of turntable

Φ 1500mm

*Mast height

H2400mm （optional 2000/2700/3000/3200/3400）

*Packing  material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1000 kg;

Max wrapping height

mast height-400mm

*Optional :

①Ramp ② control panel ③ extraposition Control Box ④electromagnetic brake

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease
Inquiry this product
MH-FG-2000C
zoom Click

MH-FG-3000C  Power pre-Stretch

Built-in Top-presser ;Automatic Pallet Stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height, suit light or unable fixed products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Speed of turntable

0～10prm

*Dia. of turntable

Φ 1500mm （optionalΦ1650/Φ1800/Φ2000）

*Dia. of top-press *plate

Φ450 mm（optionalΦ600 /Φ800）

*Mast height

H2400mm （optional 2700/3000）

*Packing material:

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

Φ1500 mm ：1500 kg;  ≥ Φ 1650 mm ：2000 kg ；

*Max  height

=mast height-400mm

*Top-press range：

500 mm ～mast height-400mm

* Machine weight

G.W.800kg/N.W.750kg

* Optional

①Ramp ②Panel ③LCD Control Box ④Magnetic clutch
*Noise ≤75 DB

*Surrounding:

Humidity ≤98%，temperature -10℃-40℃
Inquiry this product
MH-FG-2100
zoom Click

MH-FG-2000F Automatic  Pallet  stretch Wrapper

With Remote Control

Automatic contact and break film, Soft start/stop, home position,PLC control, reliable performance, easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air-pressure

0.4～0.6 MPa,

*Speed of turntable

0~10prm

*Dia.of turntable

Φ 1650mm （optionalΦ1800/Φ2000）

*Mast height

2400mm （optional 2000/2700/3000/3200/3400）

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

2000 kg

*Max wrapping height

=mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease
Inquiry this product

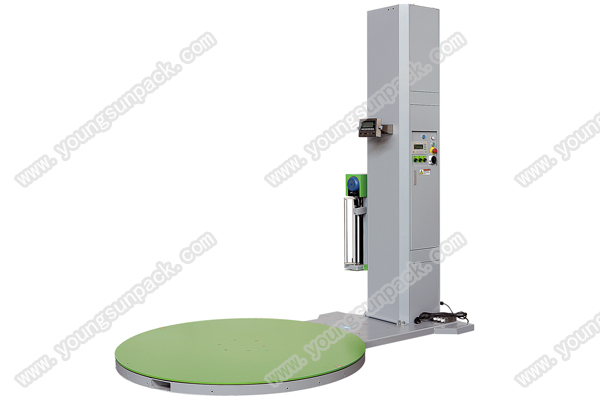

MH-FG-2000PA
zoom Click

MH-FG-2000PA Mechanical Pallet Stretch film Wrapper with weigh
MH-FG-2000PB  Power pre-stretch film wrapper with weigh

Soft start/stop, Automatic home position,
PLC control, reliable performance, easy operation
optoelectronic switch automatic test pallet height and has weigh function

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Turntable speed:

0～10 rpm

* Turntable Dia.

Φ1500 mm（optionalΦ1650/Φ1800）

*Master height

2400 mm optional 2000/2700/3000/3200/3400

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

 Φ1500mm:1500kg,≥Φ1650mm:2000kg;

*Max.height

=Master height-400 mm

*height of pallet

 110 ±10 mm

*Weighing-precisio

 100g
Inquiry this product

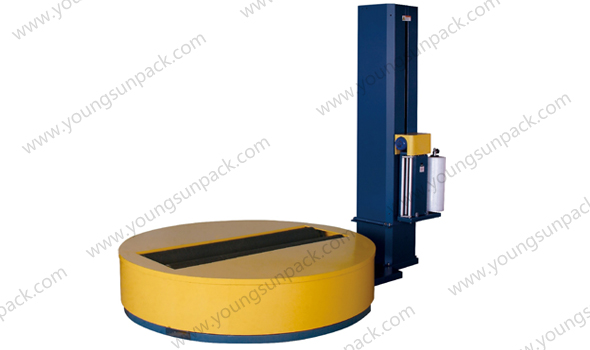

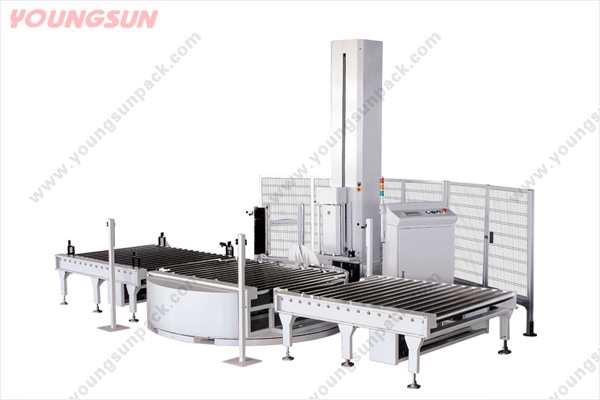

MH-FG-2000D
zoom Click

MH-FG-2000D Automatic film stretch wrapper

Be Suitable for unmanned  packaging system,
Automatic connect and break film, Soft start/stop, home position,
PLC control, reliable performance , easy operation
Sensor test pallet height, can be set different wrapping modes
and parameters according to different requirements.

*Power Voltage

3 P  AC 220/380V  50/60 Hz

*Air-pressure

0.4～0.6 MPa

*Speed of turntable

0～10prm

*Dia.of turntable

Φ 2000mm (customizable)

*Roller worktable height

≥450 mm（roller type）

*Roller worktable Dia;

Φ76mm

*Mast height

2400mm （optional 2000/2700/3000/3200/3400）

*Material Film

LLDPE film, width<=500mm,out diameter<=280mm

Capacity

2000 kg

Max wrapping height

mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

*Optional

①powered roller conveyor ②sticking mould construction ③Safety fence ④.protective raster

Inquiry this product
MH-FG-2100 roll stretch wrapper
zoom Click

MH-FG-2100 roll stretch wrapper
MH-FG-2101 roll stretch wrapper  with  pushing up device

Suitable for bathroom tissues .Soft start/stop, automatic home position, PLC control, reliable performance, easy operation
Sensor test pallet height, can be set different wrapping modes
and times according to different requirements. special for unmanned packaging system

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air-pressure

0.4～0.6 MPa

*Speed of turntable

0~10r/min (Adjustable)

*Dia. turntable

Φ 2000mm （Commonly 2000,custom -Made）

*Turntable height

450mm

*Roller diameter

159mm

*Mast height

2000mm

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1500 kg

*S Applicable product

Dia.:Φ600 ～ Φ1500 mm; Length: 400 ～1650 mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

*Optional

①LCD Control Box ②Magnetic powder brake
Inquiry this product
MH-FG-2300A Mechanical Stretch/Power Pre-Stretch Pallet Stretch Wrapper
zoom Click

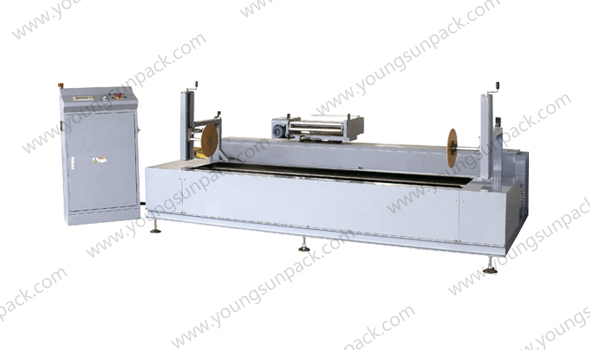

MH-FG-2200 Horizontal stretch wrapper for Fabric
MH-FG-2201 Horizontal stretch wrapper with pushing out device

Push out the products automatically after wrapping finished, can be designed for unmanned packaging system
Soft start/stop, automatic home position, Automatically messure height, reliable performance, easy operation, can design different wrapping modes and times according to different requirements. Suitable for fabric products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air pressure

0.4～0.6 MPa

*Roller speed
*Roller height:

0～45rpm
450mm

*Roller diameter

159mm,length:Custom-made

*Packing Material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1500 kg

*Applicable product

Dia.:Φ450 ～Φ1200 mm; Length: 400 ～ 220 mm

*Machine size

L(3100)mm *  W(1450)mm *  H(1227)mm(customizable)

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricating material

Common lubricating grease
Inquiry this product

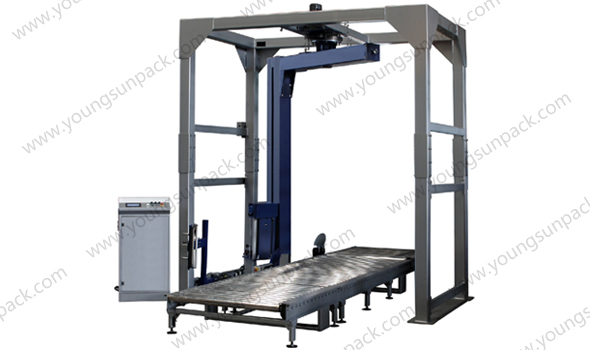

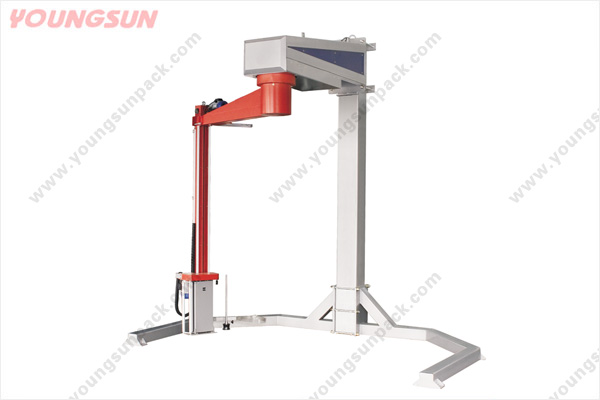

MH-FG-2300A Rotary-arm Film Stretch Wrapper
zoom Click

MH-FG-2300A  Rotary-arm  Film  Stretch  Wrapper (Mechanical stretch /Power pre-stretch)
MH-FG-2300AD Rotary-arm  Onl line automatic  Film  stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance, easy operation
Sensor test pallet height, can design different wrapping modes
and times according to different requirements .suit for heavy pallet, adopt customizable -size for wrapper, and also supply a set of full packaging system convey line

*Power Voltage

1 P/3P  AC 220/380V  50/60 Hz

*Air pressure

0.4～0.6 MPa

*Rotary-arm speed

0～22 rpm

*Rotary inner dia.

 Φ 1700 mm

*Mast height

2000mm （optional  2000/2700/3000/3200/3400）

*Film

LLDPE film, width<=500mm,out diameter<=280mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃
*Lubricating material Common lubricating grease
*Drive:  intergration gear

*Electric brush

collecting ring
Inquiry this product
MH-FG-2300B Mechanical Stretch/Power Pre-Stretch Pallet Stretch Wrapper
zoom Click

MH-FG-2300B  Rotary-arm  Pallet  Stretch  Wrapper (Mechanical stretch /Power pre-stretch)

Soft start/stop, home position,
PLC control, reliable performance, easy operation
Sensor test pallet height, can design different wrapping modes
and times according to different requirements .suit for heavy pallet, adopt customizable -size for wrapper, and also supply a set of full packaging system convey line

*Power Voltage

1 P/3P  AC 220/380V  50/60 Hz

*Packing speed:

0～15 rpm

*Mast height

3650mm

*Wrapping height

2400 mm

*Rotary inner dia.

Φ2000 mm

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Machine size

4000 x2000 x3120mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricating material

Common lubricating grease
Inquiry this product
MH-FG-900B
zoom Click

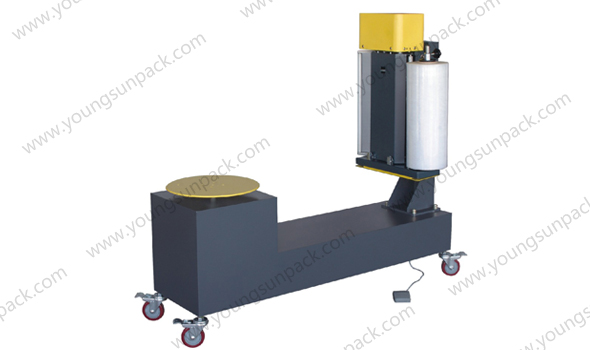

MH-FG-900B Use for Airport luggage stretch wrapper

*Power

1P AC220V /110V ,50/60H

*Speed of turntable

0-20rpm

*Table-board height

550mm

*Effective width

400 mm

*Max. size

L(250~1200)* W(200~400)*H(250~1200) mm

*Wrapping height

850 mm

*Capacity

60kg

*Dimensions of the *machine

L1600×W600×H1740mm

*Noise

≤75DB
Inquiry this product
MH-FG-810B
zoom Click

MH-FG-810B  Mini carton stretch wrapper

*Power

1P AC220V /110V ,50/60Hz

*Speed of turntable

0-20 rpm

*Table-board height

650mm

*Dia. of turntable

Φ400 mm

*Machine size

L 1150 * W 400 * H 1400 mm

*Wrapping height

400 mm

*Capacity

80kg

*Packing material

LLDPE film, width ≤500 mm, out diameter ≤Φ280 mm

*Machine weight

75kg

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricating-material

Common lubricating grease
Inquiry this product
MH-FG-800B
zoom Click

MH-FG-800B  Mini stretch wrapper (with forcing  press)

Power
*Air press

1P AC220V /110V ,50/60HZ
0.4～0.6 MPa

*Speed of turntable

0-20rpm

*Table-board height

650mm

*Dia. of turntable

Φ400 mm

*Wrapping height

400 ~500 mm;  500 ~ 650 mm；

*Capacity

80kg

*Packing material

LLDPE film, width ≤500 mm, out diameter ≤Φ280 mm

*Machine weight

110kg

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant-material

Common lubricating grease
Inquiry this product
CTP-600 Robot wrapping machine
zoom Click

CTP-600 Pre-stretch self-walk wrapping machine/robot wrapping machine
CTP-601 Anti-stretch self-walk wrapping machine//Mobile Pallet Wrapper
Battery charger and battery indicator
The diameter of the detecting wheel is 320mm
Soft start +emergency stop +robot speed adjustable
Film carriage is driven by chain
Sensor detect the pallet height
With rising and falling program
Top and bottom layers adjustable
Model CTP600 CTP601
Around Speed(m/min) 90m/min 90m/min
Max Pallet Size(W*Lmm) ∞ ∞
Min.Pallet Size(W*Lmm) 600*600 600*600
Max wrapping height 2400mm(optional 2800mm) 2400mm(optional 2800mm)
Film strech(%) 300%&230% two step change by handle (250%and 200% option) Mechanical stretch
Film tension Adjustable Adjustable
Elevator Unit speed Adjustable Adjustable
Max.film spec. ∮250mm ∮250mm
Machine size 1906×1225×2943mm 1906×1225×2943mm
Machine net weight 430kg 410kg



Inquiry this product
MH-FG-2300B Mechanical Stretch/Power Pre-Stretch Pallet Stretch Wrapper
zoom Click
CTR-201 Horizontal stretch wrapping machine
Soft start/stop, Automatic home position, PLC control, reliable performance, easy operation. Automatic put on film ,break film ,stick film and realize unmanned working
Charging source 1P, AC220/110V, 50/60 HZ
Running power DC 24 V
Battery 120Ah
Qty of packaging 200～300 pallet/ every charge
Running time battery charging every 7h
Machine moving speed 90 meter/min
Max pallet size(width * length) ∞
Max wrapping height 2400mm(optional:2800mm)
Packing material width≤500 mm, out dia.≤Φ250 mm LLDPE film
Optional accessory remote –control
Noise ≤ 75DB
Surrounding humidity≤98%, temperature -10℃～40℃
Lubricant material common lubricating grease
Inquiry this product
MH-FG-2300B Mechanical Stretch/Power Pre-Stretch Pallet Stretch Wrapper
zoom Click

CTR-301 Horizontal stretch wrapping machine
Soft start/stop, Automatic home position,PLC control, reliable performance, easy operation. Automatic put on film ,break film ,stick film and realize unmanned working
Power Press 1P, AC 220/110 V, 50/60 HZ
Rotary speed 100rpm
Drive method drive with belt
Tensioning adjust friction (adjust by hand)
Round wrapping capacity Φ102～Φ330 mm
Square wrapping capacity ①.Min. Width 102 mm, ②.Max Width 560 mm ③.Min Height 50 mm, ④ Max. opposite angles 530 mm
Packing Film Width ①.76 mm(3”), ②.102 mm(4"), ③.127 mm(5”)
Packing film Dia ①.inner coreΦ76 mm, ②.out dia. Φ100 ~ Φ200 mm
Noise ≤75 DB
Optional accessory remote –control
Noise ≤ 75DB
Surrounding humidity≤98%, temperature -10℃～40℃
Lubricant material common lubricating grease
Inquiry this product
MH-FG-2300B Mechanical Stretch/Power Pre-Stretch Pallet Stretch Wrapper
zoom Click

CTR-401 Horizontal stretch wrapping machine
Soft start/stop, Automatic home position,PLC control, reliable performance, easy operation. Automatic put on film ,break film ,stick film and realize unmanned working
Power Press 1P, AC 220/110 V, 50/60 HZ
Air press 0.4～0.6 MPa
Rotary speed 100rpm
Drive method drive with belt
Tensioning adjust friction (adjust by hand)
Break film way mechanical cold-cutting
Round wrapping capacity Φ102～Φ330 mm
Square wrapping capacity ①.Min. Width 102 mm, ②.Max Width 560 mm ③.Min Height 50 mm, ④ Max. opposite angles 530 mm
Wrapping length 240 mm～∞
Packing Film Width ①.76 mm(3”), ②.102 mm(4"), ③.127 mm(5”)
Packing film Dia ①.inner coreΦ76 mm, ②.out dia. Φ100 ~ Φ200 mm
Optional accessory ①.air cylinder press top, ②.power convey line, ③.touch screen
Noise ≤75 DB
Surrounding humidity≤98%, temperature -10℃～40℃
Lubricant material common lubricating grease
Inquiry this product

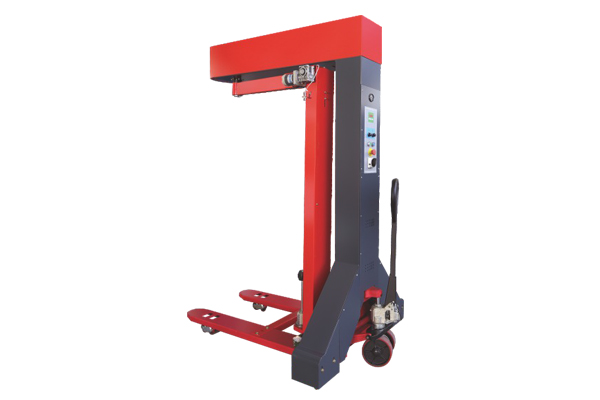

MH-FG-700 Forklift Wrapping machine
zoom Click

MH-FG-700 forklift pallet wrapping machine/forklift pallet wrapper

Battery charger and battery indicator;Continuously work 8 hours after charging full;;Soft start +emergency stop ;Sensor detect the pallert height
Charge power supply AC220/110V
Speed of rotary 10r/min
Max.Diagonal size of product 1400mm
Max wrapping height 1700mm
Max.Pallet height 2000kg
Max.film spec. ∮200mm
Machine size(mm) L1750×W1090×H2230
Machine net weigh 360kg
Battery charger and battery indicator
Continuously work 8 hours after charging full.
Soft start+ emergency stop
Sensor detect the pallet height.



Inquiry this product
Quick Links: Packing Machine  Case Erectors  Labeling Machine  Shrink Wrapper  Carton Sealer  Strapping Machine  Strapping Tool  Palletizer  Wrapping Machine  Carton Packer  Packing line  PP Straps  LLDPE Stretch Film Conveyor   Filling and Capping Machine   Vacuum Packaging Machine  Robot  Vertical Packaging Machine
