Key:POF Shrink Film,Hot Shrink Film,Cross-linked Shrink Film, PP Straps

Cross-Linked Shrink Film is advanced, strong, very transparent, high class shrink film. With outstanding shrinkage, strong seals, tear and puncture resistance, it can meet requirements of most shrink packaging applications. Like the skin of products packed, shelf appeal is enhanced remarkably. This film runs well on most types of shrink package systems.

Cross-Linked Shrink Film is advanced, strong, very transparent, high class shrink film. With outstanding shrinkage, strong seals, tear and puncture resistance, it can meet requirements of most shrink packaging applications. Like the skin of products packed, shelf appeal is enhanced remarkably. This film runs well on most types of shrink package systems.

High-performance Hot Shrink Film With high gloss and perfect clarity,ZD can be sealed strongly. Shrinkage of ZD is stable and balanced。It is durable and resists tearing strongly after shrink wrapping.The film runs well onmost flow pack sealer.

PP straps (strapping banding) application:
Strapping banding is used in a variety of applications. Hand-grade polypropylene strapping and banding are used in carton closure, bundling, and reinforcement applications. Machine-grade polypropylene is produced in a variety of core sizes to fit most automatic strapping machines. Polyester strapping and polyester banding provide excellent retained tension, superior recovery properties, and comply with requirements for bundling construction materials such as brick and lumber. Because of its resistance to ultraviolet (UV) light and weather, PET strap is also suitable for outdoor use in both hot and cold climates. Steel strapping and banding are more expensive than polyester, but provide outstanding strength. Stainless steel strapping and stainless steel banding are used in combination with stainless steel clips, but buckles may be used for light to medium-duty applications.



  • Specification

    POF Cross-linked shrink film

    Film type
    Folded/Single

    Folded

    Size

    400mm x 1332mm

    Thickness

    15um

    Weight (kg)/roll

    14.4

    Thickness tolerance

    Standard



    Test Result

    Thickness tolerance

    ZDJ-02

    Tolerance

    +/- 1.8mm

    +1.4 / -1.2mm

    Mechanical properties

    Tension strength
    (Mpa)

    MD

    ≥ 110

    128

    TD

    ≥ 110

    122

    Fracture elongation
    (%)

    MD

    ≥ 90

    101

    TD

    ≥ 90

    109

    Hot properties

    Hot shrinkage ratio
    120℃, 2.5min
    (%)

    MD

    ≥ 70

    76

    TD

    ≥ 70

    80

    Hot sealing strength
    (N/15MM)

    MD

    ≥ 13

    14.10

    TD

    ≥ 13

    14.25

    Others



    Friction coefficient
    (ud)

    Dynamic

    ≤ 0.45

    0.18

    Static

    ≤ 0.50

    0.21

    Haze ratio
    (%)

    ≤3.5

    2.42



    ≥90

    91.65

Inquiry this product
  • Specification

    High-performance hot shrink film

    Film type
    Folded/Single

    Folded

    Size

    400mm x 1332mm

    Thickness

    15um

    Weight (kg)/roll

    14.9

    Test items

    Standard
    GB/T 19787-2005



    Test Result

    Thickness tolerance

    ZD-01/T

    Tolerance

    +/- 1.7mm

    +1.3 / -1.1mm

    Mechanical properties

    Tension strength
    (Mpa)

    MD

    ≥ 100

    125

    TD

    ≥ 100

    118

    Fracture elongation
    (%)

    MD

    ≥ 90

    99

    TD

    ≥ 90

    110

    Hot properties

    Hot shrinkage ratio
    120℃, 2.5min
    (%)

    MD

    ≥ 70

    76

    TD

    ≥ 70

    80

    Hot sealing strength
    (N/15MM)

    MD

    ≥ 9

    13.95

    TD

    ≥ 9

    14.1

    Others



    Friction coefficient
    (ud)

    Dynamic

    ≤ 0.45

    0.28

    Static

    ≤ 0.50

    0.31

    Haze ratio
    (%)

    ≤4.5

    3.13

    Transmittance
    (%)

    ≥90

    91.65

Inquiry this product
  • Specification

    Low Force Cross-linked Shrink Film

    Film type
    Folded/Single

    Folded

    Size

    400mm x 1332mm

    Thickness

    15um

    Weight (kg)/roll

    14.4

    Thickness tolerance

    Standard



    Test Result

    Thickness tolerance

    ZD-04

    Tolerance

    +/- 1.8mm

    +1.4 / -1.2mm

    Mechanical properties

    Tension strength
    (Mpa)

    MD

    ≥ 110

    128

    TD

    ≥ 110

    122

    Fracture elongation
    (%)

    MD

    ≥ 90

    101

    TD

    ≥ 90

    109

    Hot properties

    Hot shrinkage ratio
    120℃, 2.5min
    (%)

    MD

    ≥ 55

    61

    TD

    ≥ 55

    65

    Hot sealing strength
    (N/15MM)

    MD

    ≥ 13

    14.10

    TD

    ≥ 13

    14.25

    Others



    Friction coefficient
    (ud)

    Dynamic

    ≤ 0.45

    0.18

    Static

    ≤ 0.50

    0.21

    Haze ratio
    (%)

    ≤3.5

    2.42



    ≥90

    91.65

Inquiry this product

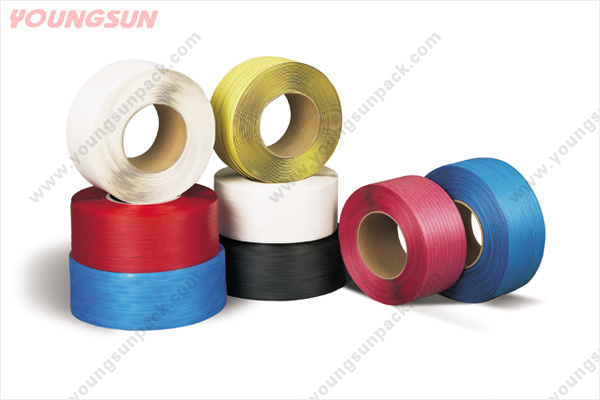

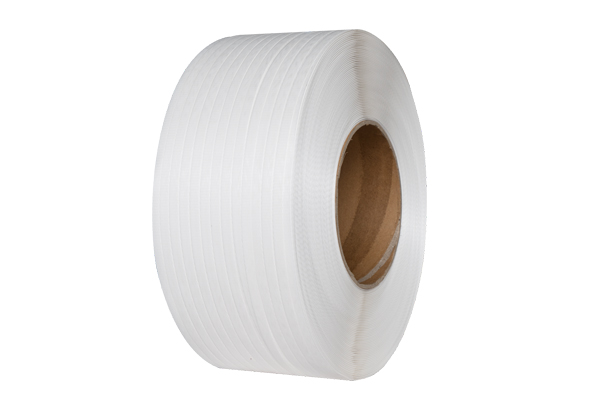

  • PP/PET Strap
  • Article number Dimension SleeveØ Roll length Tensile strength
    5047 5x0.47 200x190mm 7000m 52kg
    6055 6x0.55 200x190mm 4700m 40kg
    8045 8x0.45 200x190mm 4500m 80kg
    8045 8x0.45 200x190mm 4500m 60kg
    9050 9x0.50 200x190mm 4000m 85kg
    9055 9x0.55 200x190mm 3500m 70kg
    10055 10x0.55 200x190mm 2700m 110kg
    10065 10x0.65 200x190mm 2400m 135kg
    12055 12x0.55 200x190mm 2500m 120kg
    12063 12x0.63 200x190mm 2000m 135kg
    15090 15x0.90 200x190mm 1400m 150kg
Inquiry this product
