Key: Strapping machine

The strapping machine takes polythene plastic strap as binding material, which is mainly used in packing and binding of paper carton, wooden box and paper and paper parcels in sectors of business, postal service, railway, bank, food, pharmaceutical and publishing.

strapping machine principle:
This industrial strapping machine dispenses, tightens and seals polypropylene while packing or bundling. The machine automatically tensions strap and joins the ends with a secure heat weld. Once the strap is inserted, the motor automatically gets switched off. The machine have stainless steel strapping surface. Our range includes industrial strapping machine, table strapping machine, box strapping machine, plastic strapping machine, steel strapping machine and ball top.

Strapping machineTotal:26 products

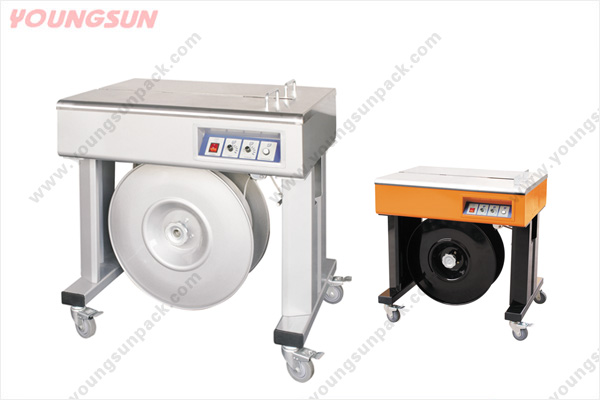

AS-10F(open)
Semi-automatic Strapping Machine
Model AS-10F(open)
Power supply 110-120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Bottom
Working Table Height 730mm
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L850 W550 H730
Packing Measurement(mm) L870 W560 H780
Machine Weight(kg) N.W:80/G.W:90
AS-10C(closed)
Semi-automatic Strapping Machine
Model AS-10C(closed)
Power supply 110- 120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Bottom
Working Table Height 730mm
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L900 W560 H730
Packing Measurement(mm) L930 W600 H850
Machine Weight(kg) N.W:85/G.W:95
AS-10L(low table)
Semi-automatic Strapping Machine
Model AS-10L(low table)
Power supply 110- 120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Bottom
Working Table Height 460mm
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L850 W545 H460
Packing Measurement(mm) L870 W560 H610
Machine Weight(kg) N.W:65/G.W:74
AS-50F(open)
Semi-automatic Strapping Machine
Model AS-50F(open)
Power supply 110- 120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Bottom
Working Table Height 730mm
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L850 W555 H730
Packing Measurement(mm) L870 W560 H780
Machine Weight(kg) N.W:80/G.W:90
AS-50L(low table)
Semi-automatic Strapping Machine
Model AS-50L(low table)
Power supply 110- 120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Bottom
Working Table Height 460mm
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L850 W545 H460
Packing Measurement(mm) L870 W560 H610
Machine Weight(kg) N.W:65/G.W:74
Inquiry this product
AS-50S
Semi-automatic Strapping Machine
Model AS-50S
Power supply 110- 120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Side
Working Table Height 380-760mm(from the ground)
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L1030 W675 H1640
Packing Measurement(mm) L960 W760 H1150
Machine Weight(kg) N.W:>80/G.W:150
AS-50C(closed)
Semi-automatic Strapping Machine
Model AS-50C(closed)
Power supply 110- 120/200-240V 50/60Hz 1PH0.25kW 2.5A
Packing speed ≤3second/strap
Tension Range5-50Kg
Hot-adhering Position Bottom
Working Table Height 730mm
Applicable PP Strap width:6-15mm thickness:0.5-0.85mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L850 W545 H730
Packing Measurement(mm) L870 W560 H780
Machine Weight(kg) N.W:80/G.W:90
YS-A2C(closed)
Semi-automatic Strapping Machine
Model YS-A2C(closed)
Power supply 220V/50/60Hz 1PH 0.25Kw
Packing speed ≤3second/strap
Tension Range 3-45Kg
Hot-adhering Position Bottom
Working Table Height 760mm
Applicable PP Strap width:5-15mm thickness:0.5-0.8mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L755 W540 H760
Packing Measurement(mm) L780 W570 H900
Machine Weight(kg) N.W:60/G.W:67
YS-A2H(H type)
Semi-automatic Strapping Machine
Model YS-A2H(H type)
Power supply 220V/50/60Hz 1PH 0.25Kw
Packing speed ≤3second/strap
Tension Range 3-45Kg
Hot-adhering Position Bottom
Working Table Height 760mm
Applicable PP Strap width:5-15mm thickness:0.5-0.8mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L755 W550 H760
Packing Measurement(mm) L780 W570 H900
Machine Weight(kg) N.W:70/G.W:78
YS-A2F(open with 4 legs)
Semi-automatic Strapping Machine
Model YS-A2F(open with 4 legs)
Power supply 220V/50/60Hz 1PH 0.25Kw
Packing speed ≤3second/strap
Tension Range 3-45Kg
Hot-adhering Position Bottom
Working Table Height 730mm
Applicable PP Strap width:5-15mm thickness:0.5-0.8mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L840 W550 H730
Packing Measurement(mm) L870 W570 H900
Machine Weight(kg) N.W:60/G.W:67
YS-A2L(low table)
Semi-automatic Strapping Machine
Model YS-A2L(low table)
Power supply 220V/50/60Hz 1PH 0.25Kw
Packing speed ≤3second/strap
Tension Range 3-45Kg
Hot-adhering Position Bottom
Working Table Height 460mm
Applicable PP Strap width:5-15mm thickness:0.5-0.8mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L755 W550 H460
Packing Measurement(mm) L760 W570 H600
Machine Weight(kg) N.W:60/G.W:69
YS-T45
Pallet Semi-automatic Strapping Machine
Model YS-T45
Power supply 1Phase/220V/50/60Hz 0.25Kw
Packing speed ≤3second/strap
Tension Range 3-45Kgs
Sword L1000mm
Hot-adhering Position Side
Packaging Height Range H340-710mm
Applicable Strap

PP width:9-15mm thickness:0.5-0.8mm

(to be specified)

Applicable Strap Spool PP 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L770 W580 H850
Packing Measurement(mm) L800 W700 H1100
Machine Weight(kg) N.W:78/G.W:88

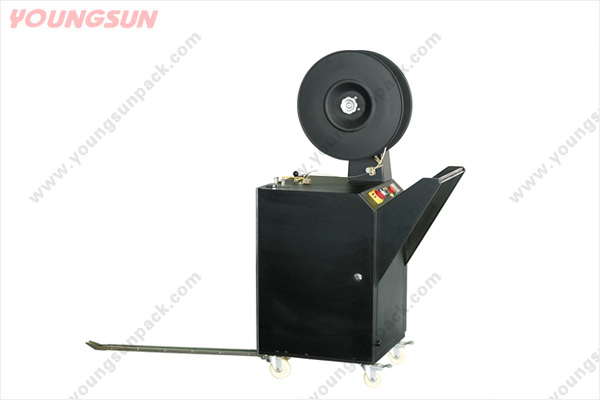

YS-T150
Pallet Semi-automatic Strapping Machine
Model YS-T150
Power supply 1Phase/220V/50/60Hz 0.6Kw
Packing speed ≤3second/strap
Tension Range 5-150Kgs
Sword L1000mm
Hot-adhering Position Side
Packaging Height Range 650mm-∞
Applicable Strap

PP or PET width:9-19mm thickness:0.5-1.0mm(to be specified)

Applicable Strap Spool PP 210mm*178mm PET 406*150mm
Control System PC board control
Machine Dimensions(mm) L1073 W550 H1670
Packing Measurement(mm) L1200 W580 H1680
Machine Weight(kg) N.W:140/G.W:180
DBA-1300A Foldable chute
Pallet Semi-automatic Strapping Machine
Model DBA-1300A Foldable chute
Power supply 1Phase/100-240V/50/60Hz 850W
Packing speed ≤3second/strap
Tension Range 5-80Kgs
Sword

L1000mm

(standard,to be longer as per request)

Hot-adhering Position Side
Packaging Height Range 650mm-∞
Applicable Strap PP or PET width:(9 10 12 13 15 16)mm thickness:0.5-1.0mm(to be specified)
Applicable Strap Spool

200 230 280 406mm*200-250mm

(to be specified)

Control System PC board control
Machine Dimensions(mm) L1870 W550 H1500
Packing Measurement(mm) L900 W600 H1650
Machine Weight(kg) N.W:150/G.W:175
DBA-1300A1 Extendable chute
Pallet Semi-automatic Strapping Machine
Model DBA-1300A1 Extendable chute
Power supply 1Phase/100-240V/50/60Hz 900W
Packing speed ≤3second/strap
Tension Range 5-80Kgs
Sword

L1000mm

(standard,to be longer as per request)

Hot-adhering Position Side
Packaging Height Range 650mm-∞
Applicable Strap PP or PET width:(9 10 12 13 15 16)mm thickness:0.5-1.0mm(to be specified)
Applicable Strap Spool

200 230 280 406mm*200-250mm

(to be specified)

Control System PC board control
Machine Dimensions(mm) L1870 W550 H1500
Packing Measurement(mm) L900 W600 H1650
Machine Weight(kg) N.W:150/G.W:175

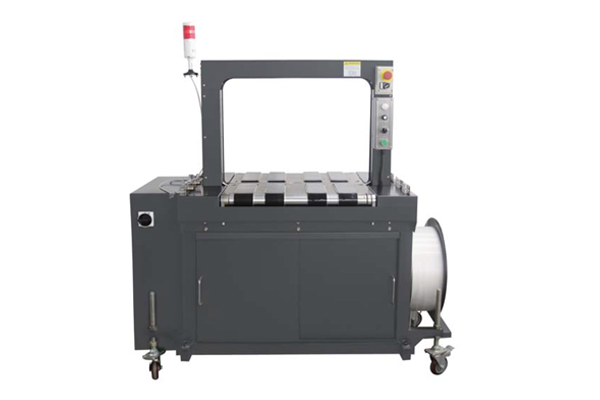

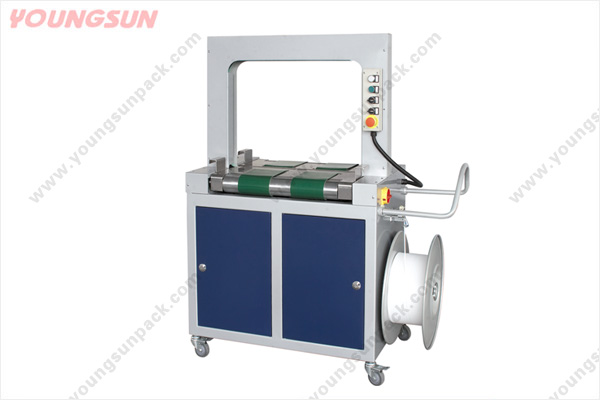

YS-305B(with belt driven working table)
High Speed Automatic Strapping Machine
Model YS-305B(with belt driven working table)
Power supply 1Phase/220V/50-60Hz/1.0KW 7A
Packing speed 40strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W650mm*H500mm(It's possible to customize the size W≤850)
Working Table Height ≥850mm
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control+PLC control "SIEMENS"
Machine Dimensions(mm) L1480 W730 H1480
Packing Measurement(mm) L1600 W800 H1600
Machine Weight(kg) N.W:240/G.W:280
Optional Width 8mm,9mm Width 11mm,12mm

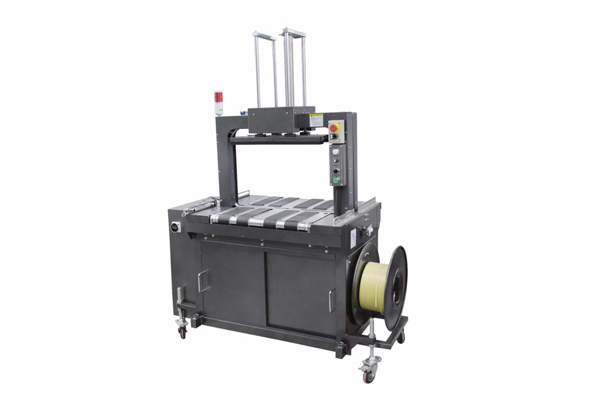

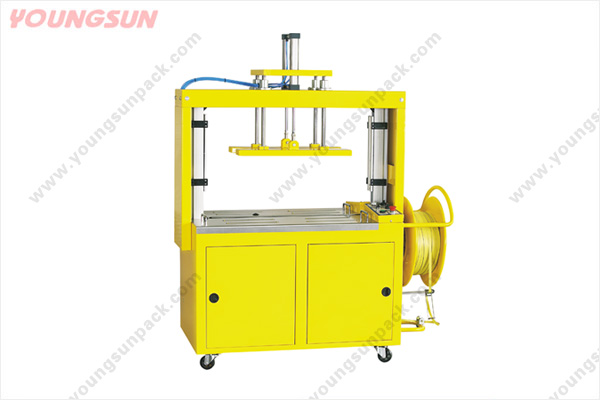

YS-305BP(with belt driven working table and top pressure)
High Speed Automatic Strapping Machine
Model YS-305BP(with belt driven working table and top pressure)
Power supply 1Phase/220V/50-60Hz/1.0KW 7A
Packing speed 30strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W650mm*H500mm(It's possible to customize the size)
Working Table Height ≥850mm
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control+PLC control "SIEMENS"
Machine Dimensions(mm) L1480 W730 H1980
Packing Measurement(mm) L1600 W800 H2100
Machine Weight(kg) N.W:270/G.W:310
Optional Width 8mm,9mm Width 11mm,12mm

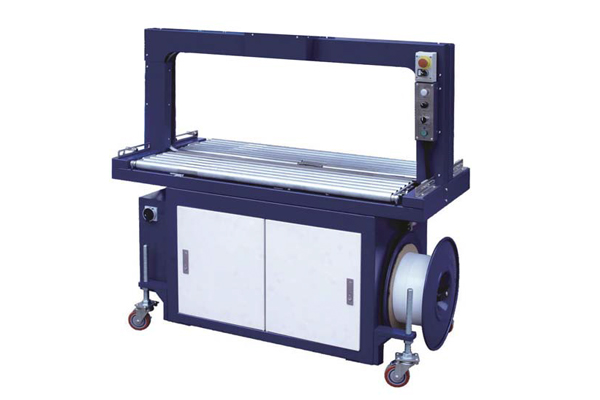

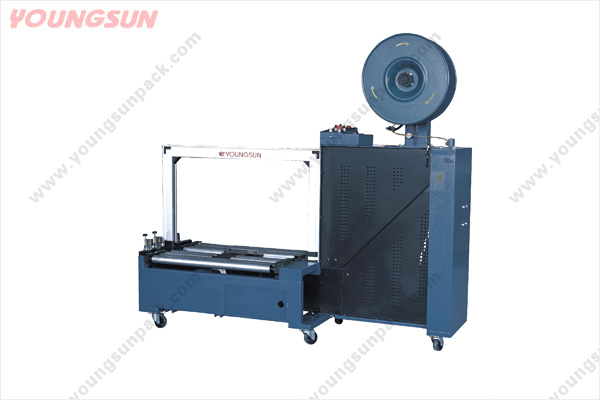

YS-305R(with power driven roller working table)
High Speed Automatic Strapping Machine
Model YS-305R(with power driven roller working table)
Power supply 1Phase/220V/50-60Hz/1.0KW 7A
Packing speed 30strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W1250mm*H500mm(It's possible to customize the size)
Working Table Height ≥760mm adjustable(not including the wheel's height)
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control+PLC control "SIEMENS"
Machine Dimensions(mm) L1520 W680 H1500
Packing Measurement(mm) L1600 W800 H1600
Machine Weight(kg) N.W:250/G.W:300
Optional Width 8mm,9mm
YS-405(DC brushless motor)
High Speed Automatic Strapping Machine
Model YS-405(DC brushless motor)
Power supply 1Phase/220V/50-60Hz/600W 4A
Packing speed 60strap/min
Tension Range 0-30Kg
Hot-adhering Position Bottom
Arch W650mm*H500mm(It's possible to customize the size )
Working Table Height 850mm
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L1170 W585 H1450
Packing Measurement(mm) L1220 W650 H1600
Machine Weight(kg) N.W:185/G.W:230

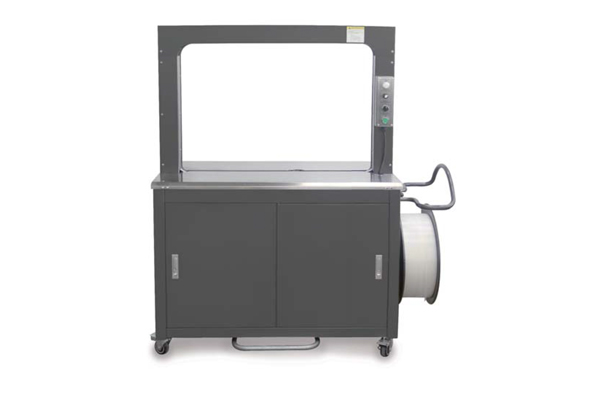

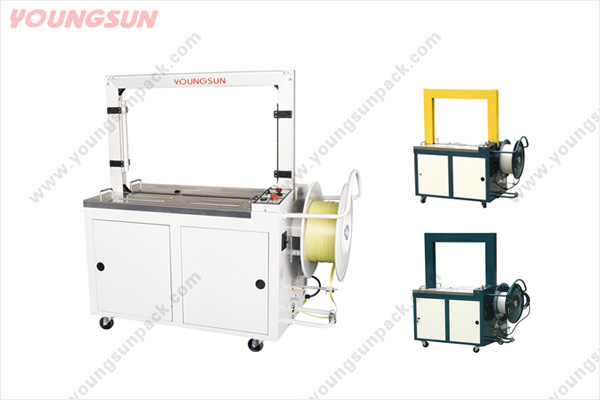

YS-305
High Speed Automatic Strapping Machine
Model YS-305
Power supply 1Phase/220V/50-60Hz/600W 4A
Packing speed 50strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W650mm*H500mm(It's possible to customize the size )
Working Table Height 850mm
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L1170 W585 H1450
Packing Measurement(mm) L1220 W650 H1600
Machine Weight(kg) N.W:185/G.W:230
YS-309
High Speed Automatic Strapping Machine
Model YS-309
Power supply 1Phase/220V/50-60Hz/600W 4A
Packing speed 40strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W650mm*H500mm(It's possible to customize the size )
Working Table Height 850mm
Applicable PP Strap

width:8mm,9mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L1170 W585 H1420
Packing Measurement(mm) L1220 W650 H1600
Machine Weight(kg) N.W:180/G.W:230
YS-312
High speed Automatic Strapping Machine
Model YS-312
Power supply 1Phase/220V/50-60Hz/600W 4A
Packing speed 40strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W650mm*H500mm(It's possible to customize the size )
Working Table Height 850mm
Applicable PP Strap

width:11mm,12mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L1170 W585 H1420
Packing Measurement(mm) L1220 W650 H1600
Machine Weight(kg) N.W:190/G.W:230
YS-305N
High speed Automatic Strapping Machine
Model YS-305N
Power supply 1Phase/220V/50-60Hz/600W 4A
Packing speed 55strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W500mm*H400mm
Working Table Height 850mm
Applicable PP Strap width:5mm thickness:(0.5-0.8)mm
Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L830 W705 H1260
Packing Measurement(mm) L900 W850 H1510
Machine Weight(kg) N.W:170/G.W:210

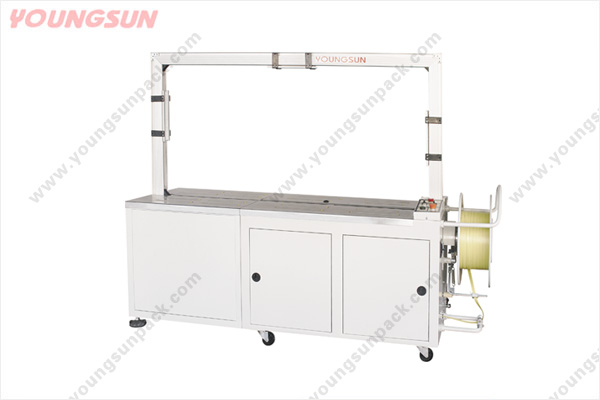

YS-305P
High speed Automatic Strapping Machine
Model YS-305P
Power supply 1Phase/220V/50-60Hz/600W 4A
Packing speed 40strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W1250mm*H500mm(It's possible to customize the size )
Working Table Height 850mm
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control
Machine Dimensions(mm) L1500 W585 H1970
Packing Measurement(mm) L1600 W800 H2100
Machine Weight(kg) N.W:220/G.W:280
Optional Width 8mm,9mm Width 11mm,12mm
Corrugated Bundle Squaring & Strapping System

①4-Side Squaring Bundle Control YS-LX 500

②Corrugated Strapper YS-305RPD

③Bundle Turner For Corrugated Corton(for optional)


Model YS-LX500
Power supply 3Phase/AC380V/50-60Hz/1.0KW 4A
Air Pressure 0.6MPa
Transport Speed 15package/min
Table Height 850mm
Weight Capability 80kg
Applicable Package Size(mm) L(250~1100) W(320~1200) H(0~450)
Material

Frame: Q235-A steet with painting on surface;

Conveyor roller: stainless iron tube,outside

Φ50mm,thickness 1.5mm,spacing 45mm

(between two rollers), center distance:95

mm(between two rollers)

Electrical Configuration

PLC control "SIEMENS"

Button Switch:French "TE"

Middle Relay:French "Schneider"

Frequency Converter:French "Schneider"

Motor:Chinese "MEIWA" DC motor

Cylinder:Taiwan "AIRTAC"

Sensor Switch and Proximity Switch:

German "P+F",Japanese "OMRON",

or other famous brand.

Dimension(mm) L1900 W2050 H1470
Packing Measurement(mm) L2100 W1950 H1500
Weight(kg) N.W:780/G.W:820
Optional

Bundle turner for corrugated carton:

L2210mm W2000mm H1520mm (dimension)

L2250mm W2100mm H1500mm(packing

measurement)

N.W:800kg G.W:850kg

Model YS-LX305RPD
Power supply 1Phase/AC 220V/50/60Hz/ 2.4Kw,12A
Packing speed 20package/min
Tension Force 0-45Kg
Table Height

920mm

Hot-adhering Position Bottom
Weight Capability 80kg
Arch

1.Standard Size:Width 1250mm Height

500mm(inner size)

2.material:Iron arch(It's possible to

customize size,≥W1050)

Electrical Configuration

PC+PLC control "SIEMENS"

Button Switch:French "TE"

Middle Relay:French "Schneider"

Frequency Converter:French "Schneider"

Motor:Chinese "MEIWA" DC motor

Cylinder:Taiwan "AIRTAC"

Sensor Switch and Proximity Switch:

German "P+F",Japanese "OMRON",

or other famous brand.

Machine Dimensions(mm) L2040 W1190 H2100
Packing Measurement(mm) L2140 W1310 H2250
Weight(kg) N.W:380/G.W:440
Optional Width 8mm,9mm
Applicable PP Strap

Width 5mm,6mm Thickness(0.5-0.8)mm

(to be specified)

Applicable PP Strap Spool

Inner dia:200mm~210mm,Out dia:400mm ~ 450mm,Width:170mm~190mm

Packing Type

Parallel1~2 Strap for optional

photoelectric control or manual operation

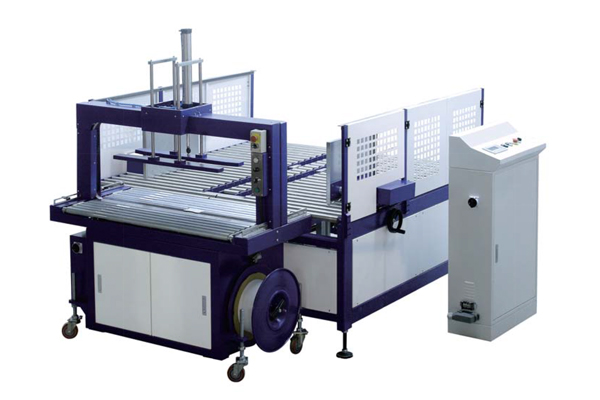

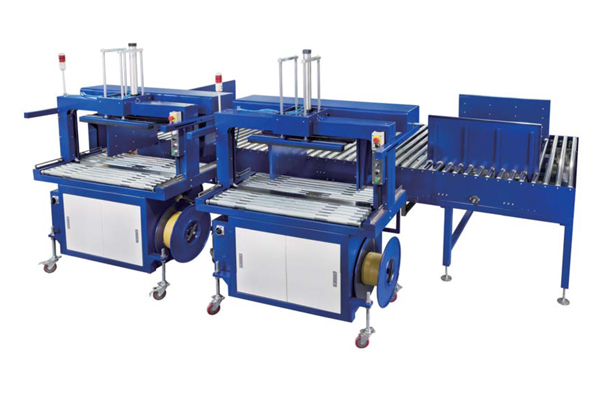

Corrugated Bundle Squaring & Strapping System

①Squaring Bundle Control YS-LX500D

②Corrugated Strapper YS-305RP


Model YS-LX500D
Power supply 3Phase/AC380V/50-60Hz/1.0KW 4A
Air Pressure 0.6MPa
Transport Speed 20package/min
Table Height 850~950mm
Weight Capability 80kg
Applicable Package Size(mm) L(250~1100) W(320~1200) H(0~450)
Material

Frame: Q235-A steet with painting on surface;

Conveyor roller: stainless iron tube,outside

Φ50mm,thickness 1.5mm,spacing 45mm

(between two rollers), center distance:95

mm(between two rollers)

Electrical Configuration

PLC control "SIEMENS"

Button Switch:French "TE"

Middle Relay:French "Schneider"

Frequency Converter:French "Schneider"

Motor:Chinese "MEIWA" DC motor

Cylinder:Taiwan "AIRTAC"

Sensor Switch and Proximity Switch:

German "P+F",Japanese "OMRON",

or other famous brand.

Dimension(mm) L4650 W1720 H1300
Packing Measurement(mm) L2700 W1800 H1500&L2000W1800H1500
Weight(kg) N.W:1700/G.W:1850
Optional

Bundle turner for corrugated carton:

L2210mm W2000mm H1520mm (dimension)

L2250mm W2100mm H1500mm(packing

measurement)

N.W:800kg G.W:850kg

Model YS-LX305RP
Power supply 1Phase/AC 220V/50/60Hz/ 1.0Kw,7A
Packing speed 30package/min
Tension Force 0-45Kg
Table Height

850mm

Hot-adhering Position Bottom
Weight Capability 80kg
Arch

1.Standard Size:Width 1250mm Height

500mm(inner size)

2.material:Iron arch(It's possible to

customize size,≥W1050)

Electrical Configuration

PC+PLC control "SIEMENS"

Button Switch:French "TE"

Middle Relay:French "Schneider"

Frequency Converter:French "Schneider"

Motor:Chinese "MEIWA" DC motor

Cylinder:Taiwan "AIRTAC"

Sensor Switch and Proximity Switch:

German "P+F",Japanese "OMRON",

or other famous brand.

Machine Dimensions(mm) L1520 W680 H2000
Packing Measurement(mm) L1600 W1310 H2100
Weight(kg) N.W:280/G.W:330
Optional Width 8mm,9mm
Applicable PP Strap

Width 5mm,6mm Thickness(0.5-0.8)mm

(to be specified)

Applicable PP Strap Spool

Inner dia:200mm~210mm,Out dia:400mm ~ 450mm,Width:170mm~190mm

Packing Type

Parallel1~2 Strap for optional

photoelectric control or manual operation

Quick Links: Packing Machine  Case Erectors  Labeling Machine  Shrink Wrapper  Carton Sealer  Strapping Machine  Strapping Tool  Palletizer  Wrapping Machine  Carton Packer  Packing line  PP Straps  LLDPE Stretch Film Conveyor   Filling and Capping Machine   Vacuum Packaging Machine  Robot  Vertical Packaging Machine
