| YS-505 | |||

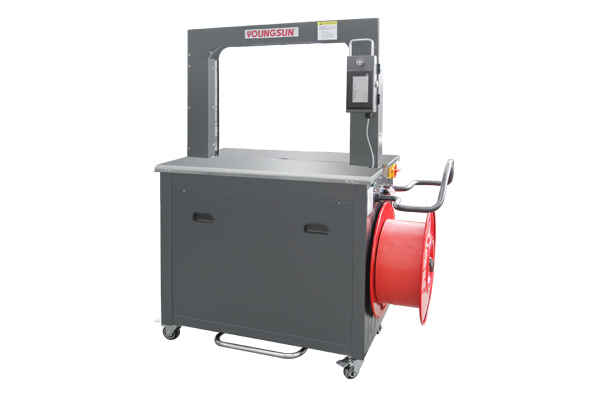

| High Speed Automatic Strapping Machine | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH 0.6kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 65cycles/min |
| Applicable PP Strap: | width5mm，6mm，thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm，outer dia.400～450mm，width170～190mm | ||
| Working Table Height: | 850 | ||
| Machine Dimension: | L1170xW585xH1450mm | N.W: | 185 kg (arch size650×500 mm) |
| Packing Measurement: | L1220×W650×H1600mm | G.W | 230 kg (arch size650×500 mm) |
| Features: | |||
| Speed up to 75cycles/min | |||
| PLC control | |||
| DC brushless motor | |||
| Toolless maintenance | |||
| Turntable operating touch screen,fault warning function | |||
| Operation plate with sensor | |||
| Independent dispenser release switch,easy to feed strap | |||
| Working table adjustable:850~950mm | |||
| Optional: | |||
