Key: water filling machine,Glass Bottle Filling Machine,Beer Bottling Line,filling and capping machine,filling and sealing machine,yogurt filling and sealing machine,milk filling sealing and capping machine,liquid filling machine

filling and capping machine Total:17products
JZY/DPG/TDZY bottle filler and crowner
CAPACITY Max 60.000 bph
BRIEF INTRODUCTION
The short tube filler in hygienic design is used to fill beer or carbonated soft drinks in glass aluminum or PET bottles. The filler is blocked with crown cork capper, screw capper and/or ring pull capper according the project requirements and is driven by frequency controlled motors. The bottles are supplied to the filler in handling parts, designed for quick changeover and made from high wear resistant plastic material. Both cold fill and warm fill up to 15°C is possible. Bottles are pressurized with CO2 and filled under counter pressure. The fill height is either controlled by vent tubes or electric probes followed by a multiple step pressure release. All parameters can be easily adjusted on the HMI. The filer is equipped with oxygen measurement, fully automatic CIP and COP process and safety separation plates and spraying system to avoid contamination with broken glass. All parts of the filler are designed for easy cleaning and sterilization.
OPERATION SAFETY
1.Protection doors surrounding the machine, alternative by filling room
2.Auto stop at all doors and windows
MACHINE BENEFITS
1.Hygienic design with automated CIP and COP. Inclining front table for easy removal of glass fragments and liquid residues.
2.Quick change over and fast release star wheels.
3.Bottle stopper soft to reduce noise and protect for fallen bottles and malfunctions.
OPERATION TYPE OF FILLER
1.JZY: Mechanical filler with vent tubes and cam control.
2.DPG: Pneumatic valve control integrated into the ring bowl for evacuating, flushing, purging, pressurizing and filling. No
mechanical control cams required.
3.TDZY: Electronic controlled filler with fill height sensor.


Inquiry this product

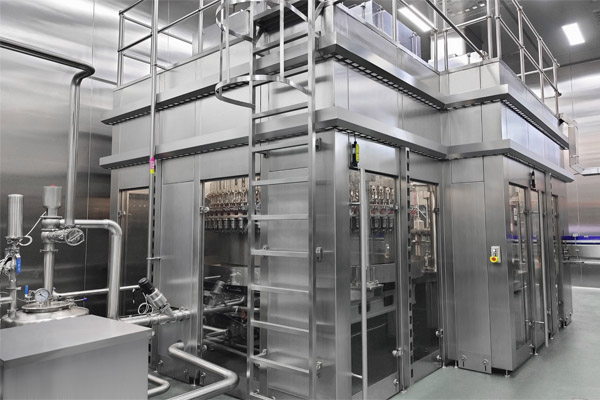

DGY Bottled Water Production Line
CAPACITY Max 43.000 bph
BRIEF INTRODUCTION
The Lines are designed to fill mineral water,purified water or other non-carbonated beverages into PET bottles. Technologies include bottle lifter,bottle unscrambler,air control,labeling machine,inkjet printer and packing machine.The capacity range from 8000 BPH to 43200 BPH can meet different production requirements.
BASIC PARAMETER
Model: GX60-20
Power supply: AC380V, DC24V
Installed power: 280KW
Air supply pressure: 0.7MPa
Air consumption: 1.0 m3/min
Quantity of machine stations: 20(capping head)
Main applicable bottle type: PET Bottle
Applicable bottle diameter: 55-97mm
Applicable bottle height: 150-340mm
Material conductivity: ≥25μs
Filling precision: ±3-5 ml
Machine size: L2904mm×W2899mm×H2924mm
Machine weight: about12t
 Environment condition: Humidty <95% (no condensation), Temperature -10-50℃, Horizontal solid concrete floor (concrete thickness >10cm)
 Noise: In working condition ≤75 dB(A)
Equipment lubrication level: Automatic lubrication of main machine
Equipment safety level: IP65

Inquiry this product
Simple Type Filling And Sealing Machine YSZB-6000
Economic Filling And Sealing Machine
Application: YSZB6000 is suitable for the packaging of preformed cups of whole milk, milk tea, coffee, juice and other materials, with the output of 6000 cups. It can select PP, pet and other composite materials, automatically complete the standard dropping cup, cup sterilization, filling, secondary sealing, and finished product transportation. It is a high performance price ratio machine with high efficiency and low energy consumption for small enterprises
Standard capacity:5000-6000 cups/hour (base on 100ml)
Cup capacity: 100ml-250ml
Filling material: Liquid or semiliquid (for example: fresh milk, yogurt beverage, juice, pure water, beverage, sauce, low consistency jam, oil etc
Percent of pass: ≥99.5%
Filling temperature: 4-40°C
Cup dimension: φ50-φ80
Cup height: 25-140mm
Feeding speed: 6cups / cycle
Air pressure: ≥0.6MPa
Air consumption:≥0.8m3/mm
Power supply: 3+N+PE 50Hz 380/220V±10% (3 phase 5 wire)
Outer dimensions (appr): 4000mm×1340mm×2078mm (L×W×H) (proximity)
Packing size (appr): 4200mm×1550mm×2300mm (L×W×H) (proximity)
Weight (approx): 2000Kg
Material of machine: 304 Stainless steel, product contact material SS316.
Film: Aluminum foil, aluminum-plastic composite, paper-plastic composite
Film size: depends on cup size
Thickness: 0.08mm-0.15mm
Inquiry this product
YSDXR

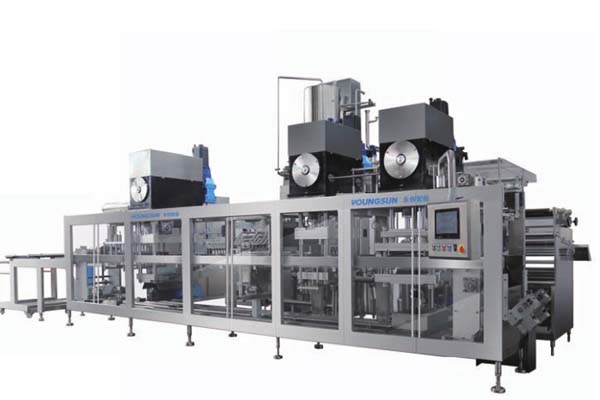

YSDXR Serial Automatic Plastic Cup Forming
YSDXR Filling and Sealing Machine

YSDXR Series automatic plastic cup forming, filling and sealing machine offers a competitive forming,filling and sealing solution for liquid,semi-liquid and pasty food products, such as yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on.

The process is from ionization dedust remove,preheating,cup forming and labeling, dynamic fruit mixing and filling, cover sealing, date printing, cutting and product conveying. The cutting mould could be adjusted based on product requirement to form six-pack cups, eight-pack cups, twelve-pack cups.

YSDXR Serial machine will be equipped with the laminar flowing air purify system, CIP connection and volumetric dynamic fruit mixing system, it is full-automatic equipment for high-efficiency, high-quality production in modern enterprise.The machine can be customized according to customers’ requirements so as to meet different customers’ needs.

Applicable Filling material:Liquid:yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on Cap film material:Al+plasticlaminated film;paper+plastic laminated film Forming film material: PS/PP/PET etc.

Used for packaging yogurt, milk, juice and beverage, condiment and so on.
Model YSDXR-8000 YSDXR-20000 YSDXR-40000
Step cups 8 12 24
Standard capacity 8000cups/h (100g) 18000 cups/h (100g) 36000 cups/h (100g)
Total power 25KW 40KW 48KW
Filling volume 50g-200g 50g-150g 50g-150g
Cup diameter 63mm x 63mm or 70mm x 70mm (can be customized)
Forming film thickness: 0.8 mm -1.2mm 0.8 mm -1.2mm 0.8 mm -1.2mm
Air pressure
≥0.6MPa
Air consumption 1.2m³/min 0.6m³/min 0.7m³/min
Outer dimensions(appr.) 9.6×3.5×3.8m(L×W×H) (according to the machine options)
Power supply (optional) 3N-PN-50Hz 380V/220V (3P 5 wires)
Inquiry this product
YSZB Serial Automatic Plastic Cup Filling and Sealing Machine

YSZB Series automatic plastic cup filling and sealing machine is capable of

working under full-automatic conditions. The process is from cup loading,

cup falling ,filling,lid foil feeding and sealing ,date printing and product output

and liquid controlling. The filling and sealing machine can be customized to

meet different customers’ needs. The machine has been widely used in

the food industry, packaging of the yogurt ,milk, mineral water, beverage ,

ice cream, seasoning and so on. Applicable Filling material:Liquid: Yogurt,

milk, sauce and so on. Cap film material:Al+plastic laminated film;

paper+plastic laminated film,0.08mm-0.15mm.

Model

YSZB-

6000

YSZB-

9000

YSZB-12000

YSZB-

20000

Step

cups

4 6 8 16

Standard

capacity

6000

cups/h

9000

cups/h

12000

cups/h

20000 cups/h

Filling

volume

50g-300g 50g-300g 50g-300g 50g-300g

Cup

diameter

φ50mm~

φ80mm

φ50mm~

φ80mm

φ50mm~

φ80mm

φ50mm~

φ80mm

Cup height 25-140mm 25-140mm 25-140mm 25-140mm
Cap film Sheet/Roll Sheet/Roll Sheet/Roll Sheet/Roll
Total power 9.5KW 10.5KW 11.5KW 21.5KW
Air pressure ≥0.6MPa ≥0.6MPa ≥0.6MPa ≥0.6MPa

Air

consumption

≥0.8m³/min ≥0.8m³/min ≥0.8m³/min ≥0.8m³/min

Outer

dimensions

(appr.)

5×2.5×3.2

m (L×W×H)

5×2.8×3.2

m (L×W×H)

5.5×3.2×3.2

m (L×W×H)

7×3.5×3.5

m(L×W×H)

Weight(appr.) 3200Kg 4200Kg 4800Kg 6200Kg

Power

supply (optional)

3N-PN-50Hz 380V/220V (3P 5 wires)
Inquiry this product
YSCSP Ultra Clean Filling Capping Machine
YSCSP ultra clean filling capping machine is designed for plastic bottle filling and capping with high hygienic standard. It is consisted of bottle feeding, bottle picking and transportation, vaporized hydrogen peroxide sterilization and aseptic air drying, filling and capping, output systems and transport.
Applicable Filling material:Liquid: Yogurt, milk, drink, fruit juice and so on.
Applicable packaging material: HDPE/PP/PS/PET bottle
Main Technical Data:
Model YSCSP-10000 YSCSP-20000
Production capacity: 10000 bottles/h 20000 bottles/h
Filling volume 200g-700g
Applicable Filling material yogurt ,milk,mineral water, beverage
Filling temperature 4-40°C
Filling error ≤±0.5%
production efficiency ≥90%
Qualification rate ≥99.5%
Single step specification 12 bottle / step 20 bottle / step
Total power 34.5Kw 38.5Kw
Running power 40%-60%
Power of motor 24Kw 28Kw
Other 1Kw 1Kw
Filling heads: 12
Air pressure:≥0.6MPa
Air consumption ≥0.8m³/min
Power supply3+N+PE 50Hz 380/220V±10%(3P 5 wires)
Outer dimensions (appr.) 8.3×3.7×3.5 m (L×W×H) 8.3×4.2×3.5 m (L×W×H)
Machine weight (appr.) 8.2 tons 8.6tons
According to different characteristics of products, the capacity will be different.
Inquiry this product
YSYGF Automatic Rotary Plastic Bottle Filling and Sealing Machine

YSYGF series machine is capable of working under full-automatic conditions. The machines are applicable to the packaging production of milk. yogurt, milk beverage, fruit juice and so on, the completed full-automatically process is from vacuum negative pressure filling,cap-forming, capping, high-frequency sealing to product outputting.

Applicable Filling material:Liquid: Yogurt, milk, drink, fruit juice and so on.

(Viscosity: 10~30 centipoises)

Applicable packaging material: HDPE/PP/PS/PET bottle; Cap material is

Al+plastic laminated film.

Main Technical Data:
Model YSYGF-24 YSYGF-32 YSYGF-40 YSYGF-48
Filling heads 24 32 40 48
Standard capacity 21000bph (100ml) 30000bph (100ml) 38000bph (100ml) 42000bph (100ml)
Filling volume :(ml) 100~1000 100~1000 100~1000 100~1000
Bottle height: (mm) 80~280 80~280 80~280 80~280
Bottle diameter: (mm ) φ40~φ85 φ40~φ85 φ40~φ85 φ40~φ85
Total power: 14.2KW 14.2KW 18.17KW 19.00KW
Air pressure: ≥0.6MPa ≥0.6MPa ≥0.6MPa ≥0.6MPa
Weight(appr.): 4000Kg 5000Kg 6000Kg 7000Kg
According to different characteristics of products, the capacity will be different.
Inquiry this product
YLP Bottle Unscrambler

YLP bottle unscrambler is composed of carrying bottle part, bottle arrangement turntable, main bottle arrangement part, electronic control unit and pneumatic device.

A large amount of disorganized bottles is involved in bottle arrangement turntable, which is sent by carrying bottle part, and then conveyed to bottle arrangement part by the belt so as to the bottles can be stood and transferred to the user’s conveyor in an organized way.

Bottle storage part can store a great number of bottles and is able to convey the bottles to bottle arrangement turntable. The speed of conveyor line can be adjusted by potentiometer of electrical box. Motor on and off can be controlled by photo electricity, which is external set on the cover of turntable.

Applicable bottle:The bottle mouth and membrane line should be flat.The deviation of the bottle mouth should be less than±0.25mm.The deviation of the bottle height should be less than ±0.2mm. Applicable bottle material:HDPE/PP/PS etc.

Main Technical Data:
Standard capacity: Depending on the bottle size
Qualification rate: ≥99.5%
Bottle height range: 80~280mm
Bottle dia range: φ40~φ85mm
Total power: 3.16Kw
Running power: 60%-80%
Air pressure: ≥0.6MPa
Air consumption: ≥0.8m³/min
Power supply(optional): 3+N+PE 50Hz 380/220V±10%
Carrying bottle part size: L2100×W1100×H1600mm
Machine dimension: L2500×W2200×H1600mm
Machine weight : 800Kg
According to different characteristics of products, the capacity will be different.
Inquiry this product
YXG Series Automatic Rotary capping machine

YXG Series automatic rotary capping machine has been designed with high quality and well known for their reputation of reliability and durability.The rotary capping machine integrates bottle inlet, cap sort, cap feed, capping, bottle outlet together. Well suitable for diversified caps, also very friendly applicable for anti-theft caps. Caps are grasped and positioned well, harmless to caps during the machine running. Magnetic cap screwing technology,continuous adjustable magnetic torque of capping head and ensuring fastness of the cap.

Applicable bottle: PET/PP/Glass round or square bottle

Applicable cap: Plastic screw cap/ Pressure cap

Main Technical Data:
Model YXG-10 YXG-12 YXG-18 YXG-24
Screwing heads 10 12 18 24
Standard capacity 15000bph (500ml) 20000bph (500ml) 30000bph (500ml) 40000bph (500ml)
Bottle volume range 220-1250ml 220-1250ml 220-1250ml 220-1250ml
Bottle height range 150-320mm 150-320mm 150-320mm 150-320mm
Bottle diameter rang φ45-φ95mm φ45-φ95mm φ45-φ95mm φ45-φ95mm
Total power 2.2KW 2.2KW 4.0KW 6.0KW
Air pressure 0.5-0.7Mpa 0.5-0.7Mpa 0.5-0.7Mpa 0.5-0.7Mpa
Air consumption 0.2-0.3m3/h 0.2-0.3m3/h 0.2-0.3m3/h 0.2-0.3m3/h
Weight(appr.) 3000Kg 3000Kg 5000Kg 6000Kg
Outer dimensions(m)

2.2×1.6×1.7

(L×W×H)

2.3×1.6×1.7

(L×W×H)

2.6×1.8×1.7

(L×W×H)

2.8×2×1.7

(L×W×H)

Power supply(optional) 3N-PN-50Hz 380V/220V (3P 5 wires)
According to different characteristics of products, the capacity will be different.
Inquiry this product
YOUNGSUN Cap Maker

YOUNGSUN cap maker is an important part of rotary plastic bottle filling and sealing machine, It is between filling system and sealing system.It includes two systems, cap (lid) making system and aluminum cap conveyor adding cap system and includes following procedures: automatic film feeding device, driving device, automatic film collecting device, split lid device, automatic waste film recycling device etc.

The splitting module cuts the film into three or four caps,and then the caps are slid into the end of the slideway to be awaiting to be taken by the mouth of the bottle.

Main Technical Data:
Cap film material: Al+plastic laminated film
Cap film dimension: According to the bottle mouth
Cap film thickness: 0.10 mm -0.12mm
Standard capacity:

≤25000bph for three Splitting Module

≤40000bph for four Splitting Module

Bottle height: 80mm~280mm
Bottle diameter: φ40mm~φ85mm
Capping motor power: 1kW
Outer dimensions : L900XW900XH2500
According to different characteristics of products, the capacity will be different.
Inquiry this product
CGX722 Blowing, Filling and Capping Combiblock

CGX722 blowing, filling and capping machine integrates the blowing system, filling system and capping system. The transmission, empty bottle handing and storage processes are reduced. It has a wide application in beverage industry and packaging of liquid products as juice, milk drink, water etc.

Main Technical Data:
Power supply: 380V/50Hz
Production capacity: 36000bp/h
Filling products: Liquid products
Filling heads: 72
Screwing heads: 24
Air consumption: 0.4m3/h
Air pressure: 0.7Mpa
Applicable bottle: PET round or square bottle
Max. Bottle body diameter: 75mm
Max.Height: 260mm
Max.Mouth diameter: 38mm
Max.Perform height:140mm
According to different characteristics of products, the capacity will be different.
Inquiry this product
YSJ Serial Spray Type Pasteurization Tunnel

YSJ Series spray type pasteurization and cooling tunnel performed food sterilization on normal pressure, its temperature is controlled 2~3℃lower than water boiling point, the actual temperature is often decided by food sterilizing technical requirement and location(when air pressure lower than boiling point, temperature is low, so maximum sterilizing temperature is low too.)

It adopts sterilization method, the principle is limited in a certain temperature range85℃-90℃,If the temperature is high enough, the bacteria will die. Different bacteria have different optimum growth temperature, heat resistance, and cold capacity.

Applicable product:high temperature instant sterilization of liquid materials such as milk,soy milk , food, fruit juice and so on.

Main Technical Data:
Model YSJ-5 YSJ-6 YSJ-7 YSJ-8
Qty of sections 5 6 7 8
Each section size:(mm) 2580×2800 2580×2800 2580×2800 2580×2800
Power of pasteurizater: (KW) 16.87 19.87 22.87 25.87
Match Qty of cooler: ( section ) 1 1 2 2
Power of Cooler :(KW ) 5.87 5.87 7.87 7.87
Water pressure:(MPa ) ≥0.2 ≥0.2 ≥0.2 ≥0.2
Qty of pump: 6 7 8 9
Air pressure: (MPa) ≥0.6 ≥0.6 ≥0.6 ≥0.6
Weight(appr.): (Kg) 4000 5000 6000 7000
Heat consumption: (kcal / hour) 90000 112500 135000 157500

Machine size

(L x W x H):

14.4×2.28

×1.8m

16.8×2.28

×1.8m

19.2×2.28× 1.8m

21.6×2.28

×1.8m

Power supply(optional): 3N-PN-50Hz 380V/220V (3P 5 wires)
According to different characteristics of products, the capacity will be different.
Inquiry this product
YSXZB Series Automatic Rotary Preformed Cup Filling and Sealing Machine

YSXZB Series automatic rotary preformed cup filling and sealing machine is applicable to pack the products like yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on.The process is from cup separating, sup falling,quantitive filling, suck cap film,sealing,and product conveying.The choice of the machine model and number of filling heads depends on the factors like required output, size and type of packaging and requirements for additional equipment.

The machine can provide a lot of solutions for the below field:suitable for both traditional and innovative packaging designs, quick change-over to alternative packaging, different ways of container closing.

Applicable Filling material:Liquid:yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on Cap film material:Al+plastic laminated film;paper+plastic laminated film. Pre-cut lid or film roll. Preformed cup type: Paper cup,Plastic cup,Alu.cup etc.

Main Technical Data:
Model YSXZB-2500 YSXZB-4000 YSXZB-5000
Cups per lane 2 3 4
Standard capacity 2500 cups/h (100g) 4000 cups/h (100g) 5000 cups/h (100g)
Filling volume 90-200gml 90-200ml 90-200gml
Cup mouth specifications φ 50- φ 80mm (can be customized)
Cup height 25~140mm 25~140mm 25~140mm
Total power 3.5KW 3.5KW 4.5KW
Air pressure ≥0.6MPa ≥0.6MPa ≥0.6MPa
Machine weight(appr.) 2000Kg 2500Kg 3000Kg
Outer dimensions(m)

1.3×1.35×2.8

(L x W x H)

.1.5×1.6×2.8

(L x W x H)

.1.8×2×2.8

(L x W x H)

Power supply (optional) 3N-PN-50Hz 380V/220V (3P 5 wires)
According to different characteristics of products, the capacity will be different.
Inquiry this product
YSXZL Serial Pouch Filling and Capping Machine

YSXZL Series Pouch Filling and Capping Machine is capable of working under full-automatic conditions. The process is from sachet loading, vacuum, fixed-position filling, nitrogen gas filling (optional), cleaning for spout, cap feeding and inserting, cap-screwing, pouch discharging and liquid controlling.

Applicable Filling material:Liquid or semi-liquid (for example: fresh milk, yogurt beverage, juice, pure water, beverage, sauce, low consistency jam, oil etc)

Applicable packaging material:OPP/AL/PE, PET/VMPET etc.

Main Technical Data:
Model YSXZL-1500 YSXZL-3000 YSXZL-5000
Filling heads 1 3 5
Standard capacity 1500bags/hour 3000bags/hour 5000bags/hour
Filling volume 120 - 280ml 120- 280ml 120- 280ml
Total power: 4KW 5KW 6 KW
Air pressure: ≥0.6MPa ≥0.6MPa ≥0.6MPa
Air consumption: ≥0.9m³/min ≥0.9m³/min ≥0.9m³/min
Outer dimensions(appr.) m(L×W×H) 3.9×2.7×2.1 3.7×2.3×2.8 4.6×4.8×3.2
Weight(appr.): 1400Kg 2000Kg 2500Kg
Power supply: 3N-PN-50Hz 380V/220V (3P 5 wires)
According to different characteristics of products, the capacity will be different.
Inquiry this product
YOUNGSUN Spout Inserter

YOUNGSUN spout inserter has been designed with high quality and well known for their reputation of reliability and durability.

YOUNGSUN has years of experience in manufacturing spout inserter. The high quality of all materialand strict technical standard for all mechanical and electric components, with high efficiency, precise assembling and rigorous testing procedures, lead to high performance ,safe and durable products.

Spout inserter is designed for inserting and sealing spouts on the top center of stand up pouch. It has wide application in food, beverage and daily chemical industry.

Main Technical Data:
Pouch type: Stand up pouch
Max.Speed: 2500 pcs/min
Working efficiency: ≥90%(Material, packing material and equipment maintenance will affect the efficiency and yield)
Qualification rate of products: ≥99.5%
Power: 13KW
Air pressure; 0.6~0.8MPa
Power supply: 380V/220V (3P 4Wire)(Can be customized)
Equipment dimensions (about): Depends on final design and factory layout
Weight (about): 4500Kg
According to different characteristics of products, the capacity will be different.
Inquiry this product
YSXCSP serial Ultra Clean Filling and Capping/Sealing Machine

YSXCSP serial rotary type ultra clean filling and capping/sealing machine is designed for big bucket filling and capping/sealing. Usually it is for the low temperature and cold chain product, such as yoghurt and yoghurt beverage.

The features:
1.The bottles or bucket is separated and feed by sprial rod.
2.It is suitable for different bottle specifications from 150ml to 2000ml(with same mouth ameter).
3.The machine can be made to use capping or pre-cut aluminum foil sealing accroding to customer’s requirements.
4.Vaporized H2O2 sterilization, filling and capping/sealing are finished in the clean seamless chamber.
5.Simplified bottle neck positioning technology by mold plate opening and closing, which is applicable for filling various bottles with same bottle neck but different in volume and shape. Thus, the machine is in a quality of high capability, quick changeover time and high production efficiency.
6.Machine is made of stainless steel, which can meet foot grade requirements.
7.Drip proof design for filling heads
Inquiry this product
Secondary Packaging System

To serve as the manufacturer of advanced packaging system and engage in providing the best packaging solution for customer.YOUNGSUN secondary packaging system covers the beverage, food, household & personal care products and other industries.The packaging system will be designed based on customers’ different requirements of bottle, can, film pack and box.

Based on the features of beverage enterprise production, the packaging and intelligent storage system will cover the whole processes including forming, filling,sealing, labeling, coding,strapping,palletizing, pallet stretch wrapping etc.
1.Bakery food pillow packaging and cartoning packaging line.
2.Granular goof bagging packaging line
3.Liquid filling packaging line
4. Quantitative powder packaging line
5.Powder and Solid products in cans packaging line
6.Powder and Solid products in cans packaging line
Inquiry this product
Quick Links: Packing Machine  Case Erectors  Labeling Machine  Shrink Wrapper  Carton Sealer  Strapping Machine  Strapping Tool  Palletizer  Wrapping Machine  Carton Packer  Packing line  PP Straps  LLDPE Stretch Film Conveyor   Filling and Capping Machine   Vacuum Packaging Machine  Robot  Vertical Packaging Machine
