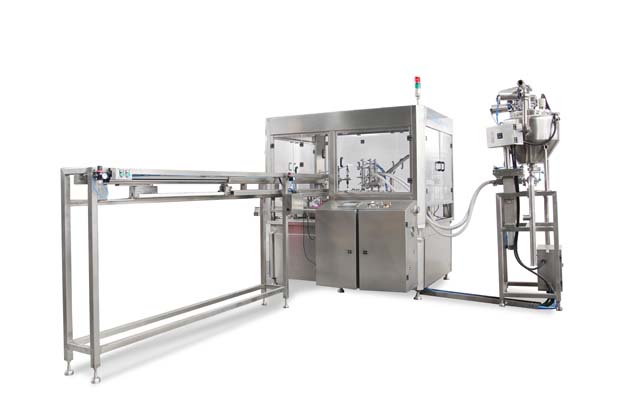

| YSXZL Serial Pouch Filling and Capping Machine | |||
YSXZL Series Pouch Filling and Capping Machine is capable of working under full-automatic conditions. The process is from sachet loading, vacuum, fixed-position filling, nitrogen gas filling (optional), cleaning for spout, cap feeding and inserting, cap-screwing, pouch discharging and liquid controlling. Applicable Filling material:Liquid or semi-liquid (for example: fresh milk, yogurt beverage, juice, pure water, beverage, sauce, low consistency jam, oil etc) Applicable packaging material:OPP/AL/PE, PET/VMPET etc. | |||
| Main Technical Data: | |||
| Model | YSXZL-1500 | YSXZL-3000 | YSXZL-5000 |
| Filling heads | 1 | 3 | 5 |
| Standard capacity | 1500bags/hour | 3000bags/hour | 5000bags/hour |
| Filling volume | 120 - 280ml | 120- 280ml | 120- 280ml |
| Total power: | 4KW | 5KW | 6 KW |
| Air pressure: | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
| Air consumption: | ≥0.9m³/min | ≥0.9m³/min | ≥0.9m³/min |
| Outer dimensions(appr.) m(L×W×H) | 3.9×2.7×2.1 | 3.7×2.3×2.8 | 4.6×4.8×3.2 |
| Weight(appr.): | 1400Kg | 2000Kg | 2500Kg |
| Power supply: | 3N-PN-50Hz 380V/220V (3P 5 wires) | ||
| According to different characteristics of products, the capacity will be different. | |||
| Main Configuration: | ||
| main electrical components: | siemens | |
| Cylinder: | SMC/Festo | |
| Driver: | SEW | |
| Sensor: | P+F | |
| Touch screen: | Siemens | |
| PLC: | Siemens | |
| Inverter: | Schneider | |
| Optional Function: | ||
| 1. Class 100 laminar flow hood | ||
| 2. Code printer, ink-jet printing. | ||
| 3. Heraeus sterilizing module(for cap and spout) | ||
| 4. Fruit particles adding module |
| Equipment Structure: | ||
| Turntable and traction system: | ||
| 1.Drive by inverter | 2.Mechanical drive system | |
| 3.Turntable | 4.Framework and safety guard | |
| Bagging system: | ||
| 1.Sachet magazine | 2.Automatic sachet feeding system | |
| 3.Bagging system | 4. Detection sensor for bagging | |
| Filling system: | ||
| 1.Pressure & capacity quantitative system | 2.Filling system | |
| 3. Cleaning system | 4.CIP cleaning interface | |
| Capping system: | ||
| 1.Sensor detection | 2.Cap magazine | |
| 3.Cap sorting device | 4.Cap putting sildeway | |
| Screw cap system: | ||
| 1.Cap swivel head | ||
| 2.Drive system to control up-and-down motion of swivel head | ||
| CIP cleaning system, material cylinder body and liquid level control system: | ||
| 1.Pneumatic conversion valve | 2.CIP cleaning accessories | |
| 3.Stainless steel material tank | ||
| Control system: | ||
| 1.PLC control | 2.HMI system (touch screen) | |
| 3.Trouble alarm with warning information | 4. Safety protection | |
| Parameters and functions are subject to change without further notice. | ||
Some Samples:
