440*280*180

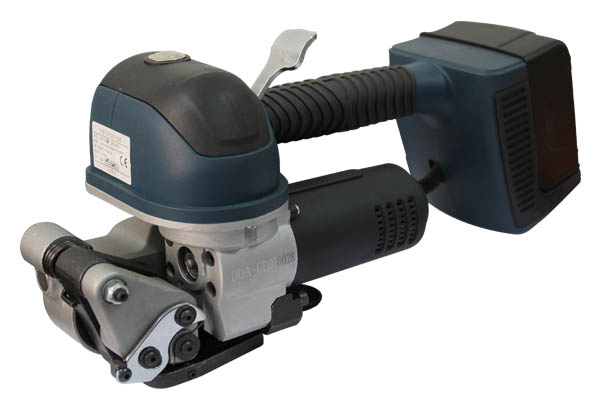

DD19A Battery powered

plastic  strapping tools

Widely used in paper,

aluminum,textile,steel,

logistics,farm,chemical,

metalindustlies and soon.

Spare

 parts

  Two batteries
and commonly
 used tool

1. lightweight body and easy to use.
2. Without fasteners,using friction hot melt, the interface is beautifuland strong.
3. High degree of automation,simple operation and easy to understand.
4.Easy to move,for a variety of venues,lhe various size of the package can be applied.
5.The body and components are made of high-strength alloy materials and engineering plastics,which is durable in use.
6. High safety performance.
7. When externalpower supply,switch on for the supply and relay off battery power supply. No external power supply by battery.

Two batteries per set

( 14.8V-4000mAh

59.2Wh )

Stretch force: within 400-3500N,maximum depends on

quality of strap.

Name

Function

Widely used in paper,aluminum,steel,wood,wooden packaging, chemical fiber, cotton, tobacco,chemicals,metal products industries and so on.

Features

1. High-power pneumatic design, lightweight body and easy to use.

2. Without fasteners,using friction hot melt, the interface is beautifuland strong.

3. High degree of automation, taut and strong welding shell controllability.

4. Large tightening force and special structure design to achieve tightening and packaging easily. Such as the materials of steel, aluminum ingots,heavy packaging.

5. The tool is durable,adopting high-strength alloy materials for the body and components,high reilability design, and advanced man'Ufacturing technology.

6. Patented design,safe for use, fatigue-free design.

Model

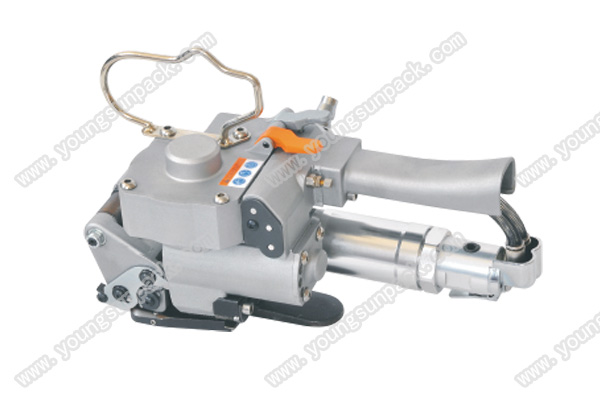

A19

A25

Apply straps size

19-25mm

Apply straps

Sealstraps form

Friction and hot melting

Maximum tension force

3500N

Air pressure

0.5-0.8 MPa

Weight

3.82kg

Machine specification

280 x 160 x 180 mm

Name

Function

Widely used in paper,aluminum,steel,wood,wooden packaging, chemical fiber, cotton, tobacco,chemicals,metal products industries and so on.

Features

1. High-power pneumatic design, lightweight body and easy to use.

2. Without fasteners,using friction hot melt, the interface is beautifuland strong.

3. High degree of automation, taut and strong welding shell controllability.

4. Large tightening force and special structure design to achieve tightening and packaging easily. Such as the materials of steel, aluminum ingots,heavy packaging.

5. The tool is durable,adopting high-strength alloy materials for the body and components,high reilability design, and advanced man'Ufacturing technology.

6. Patented design,safe for use, fatigue-free design.

Model

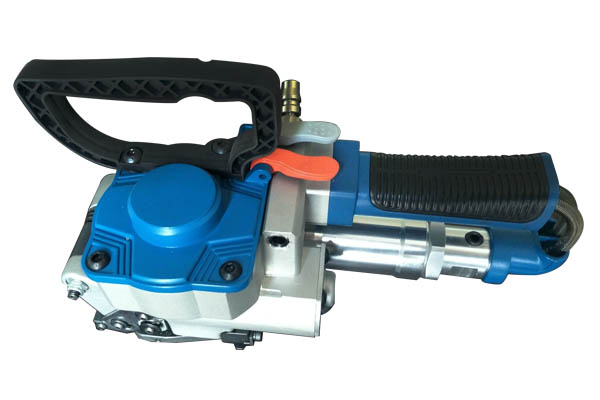

B19

B25

Apply straps size

19-25mm

Apply straps

Sealstraps form

Friction and hot melting

Maximum tension force

3500N

Air pressure

0.5-0.8 MPa

Weight

3.8kg

Machine specification

280 x 160 x 180 mm

Name

Function

Features

1. High welding and cutting efficiency,achieving PET tape with welding and cutting in a very short time.

2. The welding is reliable and beautiful, adopting accurate positioning with reinforced motor design to reailze reliable operation.

3. The machine is durable,adopting high-strength alloy materials for the body and components. high reliability design,and advanced manufacturing technology.

4. Extensive usage for the PET straps with specifications.

5. Patented design,safe for use, fatigue-free design.

Model

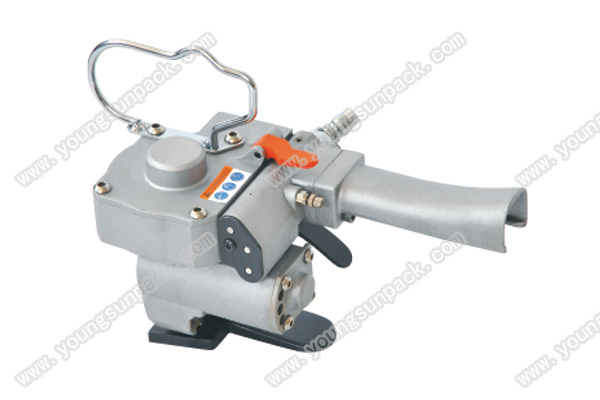

R19

Apply straps size

Apply straps

Weld time adjustment range

1-5s

Name

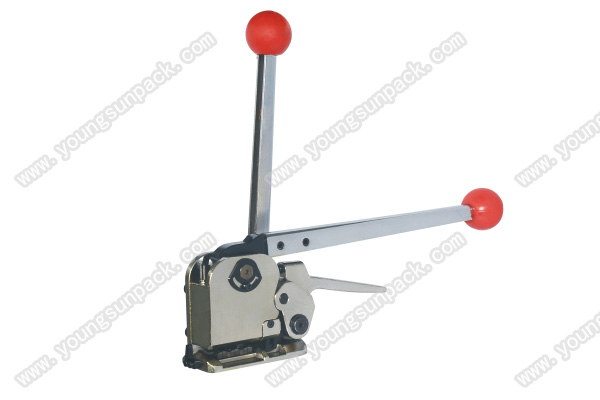

GD35 Manualsealless steel strapping tools

Function

Features

1. Lightweight body and easy to use,no external power required.

2. Without fasteners, adopting two-stage booster structure, can be easily achieved with a fastening between the steel packaging,high connection reliability.

3. Large tightening force and specialstructure design to achieve tightening and packagni g easily.Such as the materials of steel, aul minum ingots, heavy packaging.

4. The tool is durable, adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

Model

GD35

Apply straps size

Apply straps

Maximum tension force

Steel strip on the maximum tension between 70% and 80%

Features

1. Ughtweight body and easy to use, no external power required.

2. Without fasteners, adopting two-stage booster structure, can be easily achieved with a fastening between the steel packaging, high connection reliability.

3. Large tightening force and special structure design to achieve tightenni g and packagni g easliy. Such as the materials of steel,aluminumingots,heavy packagni g.

4. The tool is durable, adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

5. Patented design,safe for use, fatigue-free design.

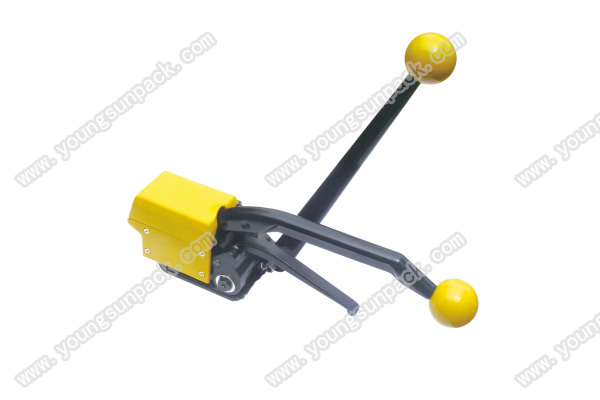

Model

A333

Apply straps size

Width

12.7-19 mm

Thickness

0.38-0.7mm

Apply straps

Steel strip

Padlock form

Yin and yang buckle

Weight

3.9 kg

Size

387×168×308mm

Maximum tension force

Steel strip on the maximum tension between 70% and 80%

Name

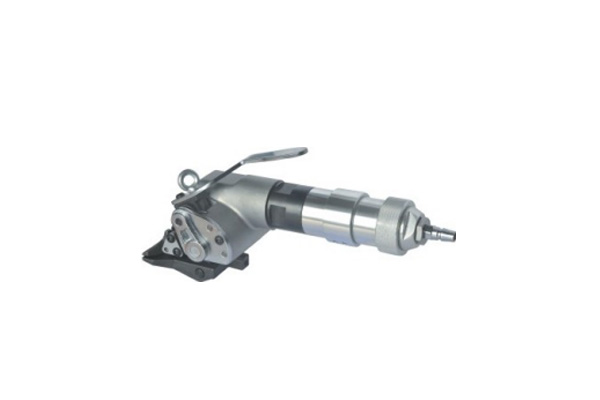

FTL-32 pneumatic steel tensioner

Air pressure

0.4-0.63Mpa

Steel strip tension speed

85mm/sec

Tension force

8.5KN

Machine weight

4.1kg

Straps specification

32 x (0.8-1.2)mm

Model

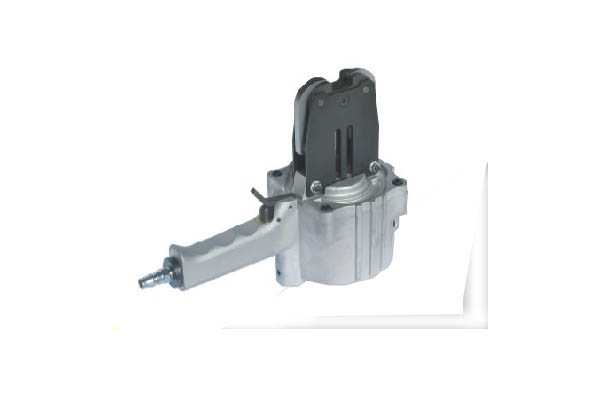

FTS-32 pneumatic padlock tools

 Air pressure

0.49-0.63Mpa

Machine weight

3.1 kg

Strength of extension

15kN

Straps specification

32 x (0.8-1.2)mm

Name

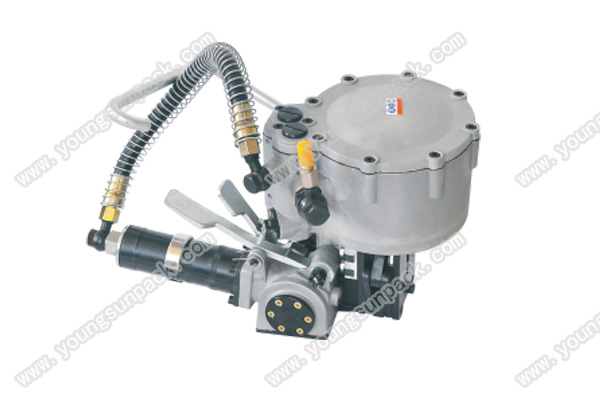

KZ-32/19 pneumatic steel strapping tools

Apply straps

Steel strip

 Air pressure

0.35-0.6Mpa

Straps specification

（19-32）×（0.8-1.2） mm

Steel strip tension speed

5.3 m/min

Tension force

≥9.8 KN/0.6Mpa

Extension strength of padlock section

≥18.4kN

Machine weight

15 kg

Name

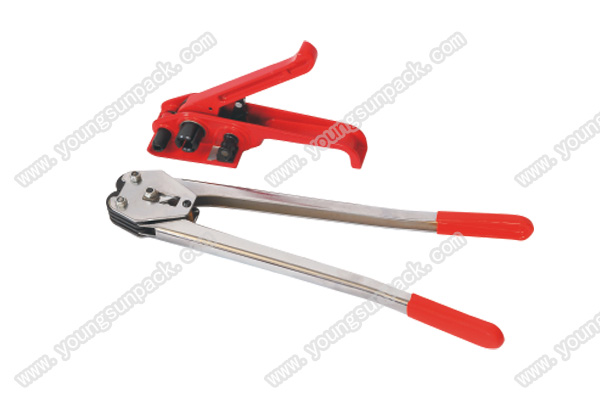

H19,J19 Manual plastic strapping tools

Function

Features

1. Smart design,easy to use and move.

2. Large tightening force and special structure design to achieve tightenni g and packagni g easily. Such as the materials of steel, aluminum ingots, heavy packaging.

3. The tool is durable,adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

4. Patented design,safe for use, fatigue-free design.

Model

Tensioner H19

Sealers J19

Apply straps size

Width

13-19 mm

Thickness

0.5-1.0 mm

Weight

1.18 kg

1.84 kg

Apply straps

PP strap or PET strap

Name

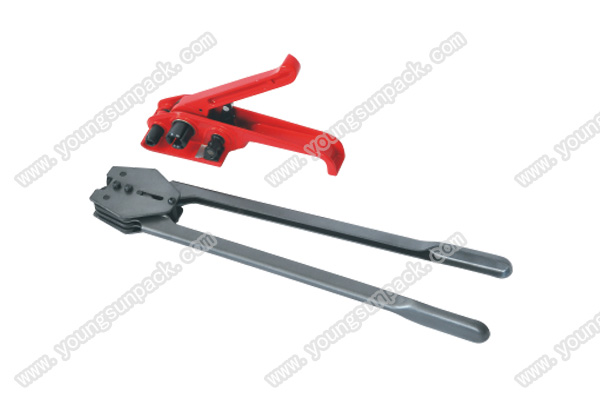

H19,C380 Manualplastic strapping tools

Function

Features

1. Smart design,easy to use and move.

2. Large tightening force and special structure design to achieve tightenni g and packagni g easily. Such as the materials of steel,aluminum ingots,heavy packagni g.

3. The tool is durable,adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

4. Patented design,safe for use, fatigue-free design.

Model

Tensioner H19

Sealers C380

Apply straps size

Width

13-19 mm

Thickness

0.5-1.0 mm

Weight

1.18kg

1.76kg

Apply straps

PP strap or PET strap

Name

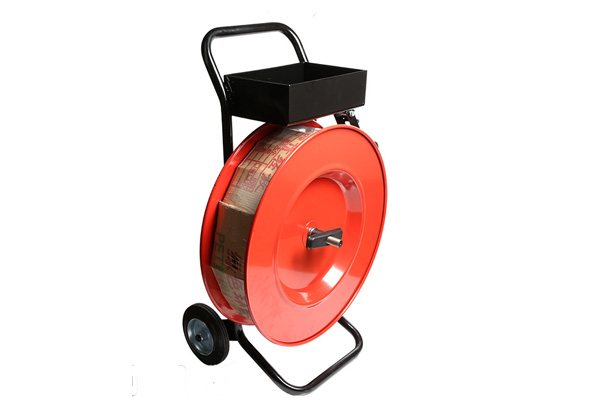

luxury PET strap dispenser

Model

H500

405

N.W.

25kg

28kg

Size

65×45×101cm

65×48×110cm

Apply range

Inner diameter 400mm PET strap

Name

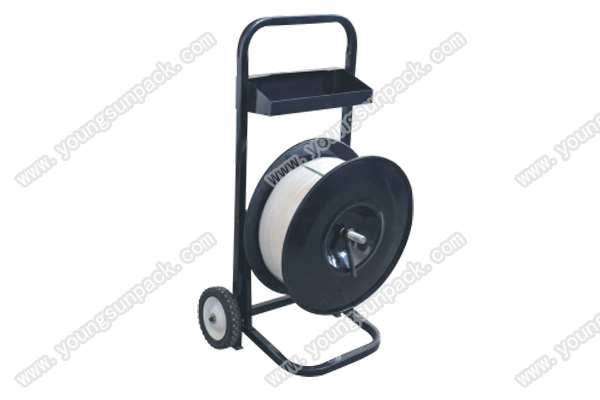

P200 PP strap dispenser

N.W.

13.3kg

Size

61×34×101cm

Apply range

Inner diameter 200mm PP strap

Name

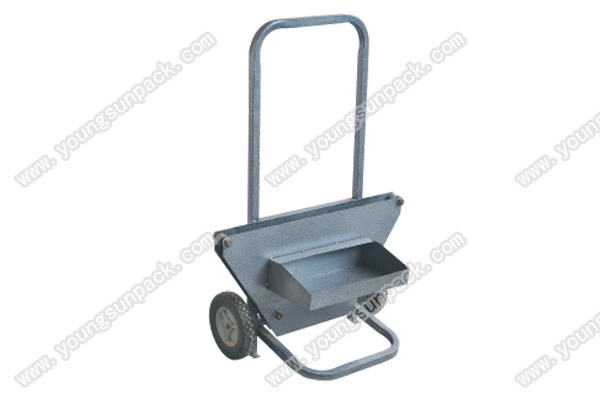

G500 steel strap dispenser

N.W.

15.1kg

Size

68×31×102cm

Apply range

13/16/19/25/32/40 steel strip，inner diameter unlimited

Name

Simple PET dispenser

N.W.

15.2kg

Size

61×34×101cm

Apply range

PET strap

Name

BM500 manual film wrapper

N.W.

1.4kg

Film weight

3-5kg

Film width

30-50cm

Film inner

38-76mm

Size

490 x 260 x 90mm

Package

One set/box

Name

Manual PP strapping tools

Function

Features

1. Smart design,easy to use and move.

2. Large tightening force and special structure design to achieve tightenni g and packagni g easily. Such as the materials of steel,aluminum ingots,heavy packagni g.

3. The tool is durable,adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

4. Patented design,safe for use, fatigue-free design.

Model

Tensioner (light)

Tensioner (heavy)

Sealers

Weight

1.12kg

1.68kg

1.24kg

Apply range

Straps Width

12-16 mm

Apply straps

PP straps

Name

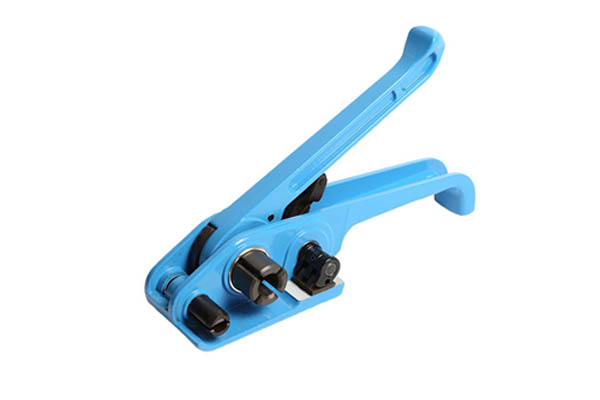

XW-20 Manualfiber strapping tools

Function

Features

1. Smart design,easy to use and move.

2. Large tightening force and special structure design to achieve tightenni g and packagni g easily. Such as the materials of steel,aluminum ingots,heavy packagni g.

3. The tool is durable,adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

4. Patented design,safe for use, fatigue-free design.

Weight

1.12kg

Apply range

Straps Width

13-20 mm

Weight

1.18kg

1.76kg

Apply straps

Polyester fibre straps, flexible straps

Name

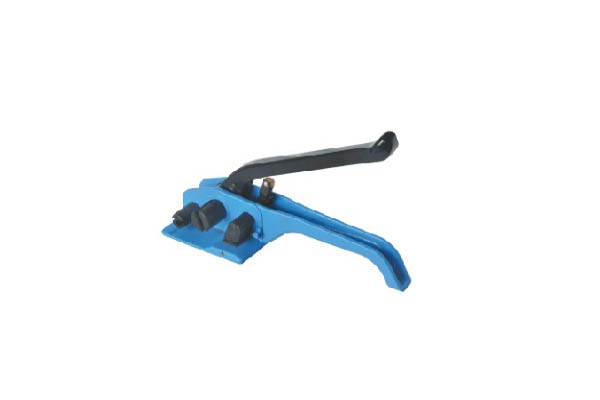

XW-50 Manual textile strapping tools

Function

Features

1. Smart design,easy to use and move.

2. Large tightening force and special structure design to achieve tightenni g and packagni g easily. Such as the materials of steel,aluminum ingots,heavy packagni g.

3. The tool is durable,adopting high-strength alloy materials for the body and components,high reliability design, and advanced manufacturing technology.

4. Patented design,safe for use, fatigue-free design.

Weight

1.88kg

Apply straps size

Width

Thickness

13-50 mm

Apply straps

Apply strapspolyester fibre straps, flexible straps
