YSDXR Serial Automatic Plastic Cup Forming
YSDXR Filling and Sealing Machine

YSDXR Series automatic plastic cup forming, filling and sealing machine offers a competitive forming,filling and sealing solution for liquid,semi-liquid and pasty food products, such as yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on.

The process is from ionization dedust remove,preheating,cup forming and labeling, dynamic fruit mixing and filling, cover sealing, date printing, cutting and product conveying. The cutting mould could be adjusted based on product requirement to form six-pack cups, eight-pack cups, twelve-pack cups.

YSDXR Serial machine will be equipped with the laminar flowing air purify system, CIP connection and volumetric dynamic fruit mixing system, it is full-automatic equipment for high-efficiency, high-quality production in modern enterprise.The machine can be customized according to customers’ requirements so as to meet different customers’ needs.

Applicable Filling material:Liquid:yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on Cap film material:Al+plasticlaminated film;paper+plastic laminated film Forming film material: PS/PP/PET etc.

Used for packaging yogurt, milk, juice and beverage, condiment and so on.
Model YSDXR-8000 YSDXR-20000 YSDXR-40000
Step cups 8 12 24
Standard capacity 8000cups/h (100g) 18000 cups/h (100g) 36000 cups/h (100g)
Total power 25KW 40KW 48KW
Filling volume 50g-200g 50g-150g 50g-150g
Cup diameter 63mm x 63mm or 70mm x 70mm (can be customized)
Forming film thickness: 0.8 mm -1.2mm 0.8 mm -1.2mm 0.8 mm -1.2mm
Air pressure
≥0.6MPa
Air consumption 1.2m³/min 0.6m³/min 0.7m³/min
Outer dimensions(appr.) 9.6×3.5×3.8m(L×W×H) (according to the machine options)
Power supply (optional) 3N-PN-50Hz 380V/220V (3P 5 wires)

Main Configuration:
Servo motor Siemens
Cylinder: SMC/ Festo
Reducer box: SEW
Sensor: P+F
Electromagnetic clutch: Yanxin
Touch screen: Siemens
PLC: Siemens
Inverter: Schneider,Danfoss
Cylinder inspecting sensor: SMC
Position inspecting sensor: P+F
All low voltage electrical : Schneider,Siemens
Warning light Schneider
Liquid level inspecting : E+H
Pneumatic butterfly valve: GEA
* Parameters and functions are subject to change without further notice.

Optional Function:
1. Fruit grain mixing filling
2. Code printer, ink-jet printing
3. Conveyors
4. Can be equipped with automatic packaging line.

Machine Structure:
Conveyor system Preheating system
Electrostatic dust removal system Forming system
Filling system Wrap-Around labeling system(optional)
Films convey system Sealing system
Cooling system Cutting system
CIP cleaning nozzle Central lubrication system
Electric controlling system Dynamic fruit grain mixture filling system

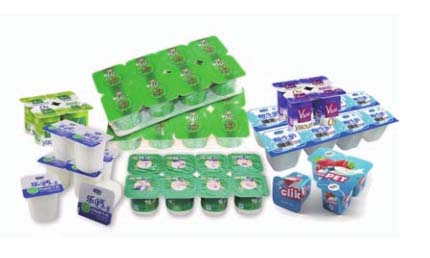

Some Samples:
