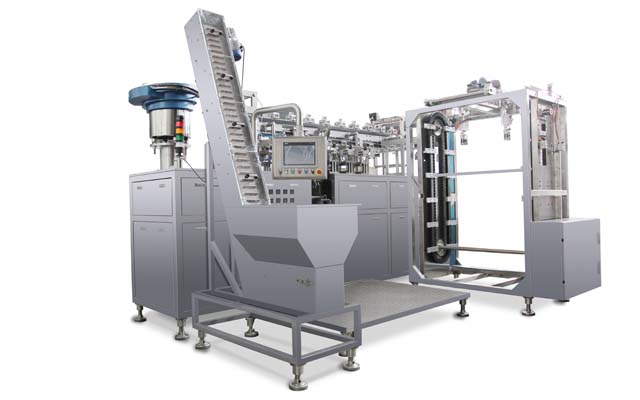

YOUNGSUN Spout Inserter

YOUNGSUN spout inserter has been designed with high quality and well known for their reputation of reliability
and durability.

YOUNGSUN has years of experience in manufacturing spout inserter. The high quality of all materialand strict technical standard for all mechanical and electric components, with high efficiency, precise assembling and rigorous testing procedures, lead to high performance ,safe and durable products.

Spout inserter is designed for inserting and sealing spouts on the top center of stand up pouch. It has wide application in food, beverage and daily chemical industry.

Main Technical Data:
Pouch type: Stand up pouch
Max.Speed: 2500 pcs/min
Working efficiency: ≥90%(Material, packing material and equipment maintenance will affect the efficiency and yield)
Qualification rate of products: ≥99.5%
Power: 13KW
Air pressure; 0.6~0.8MPa
Power supply: 380V/220V (3P 4Wire)(Can be customized)
Equipment dimensions (about): Depends on final design and factory layout
Weight (about): 4500Kg
According to different characteristics of products, the capacity will be different.

Main Configuration:
Electrical components Brand Country
Cylinder Festo Germany
Main drive Schneider French
Speed reducer Sew Germany
Main electrical parts Siemens Germany
PLC Siemens Germany
Sensor P+F Germany
Touch screen Touch screen Germany
Parameters and functions are subject to change without further notice.



Machine Features:
1. With rail feeder, which means the pouches will be pushed and output on the rails.Then, the rails with pocuhes will be taken manually for the feeding of filling machine. All components are made of carbon steel or stainless steel, which can meet hygienic and quality requirements of food and pharmaceutical industry and environmental standard.
2. Automatically detects faults, show the fault, sound an alarm and shut down the machine.
3. Easy to operate, precise control, stable operation and long service life.
4. High efficiency and energy saving.
5.Easy maintenance.



Equipment Structure:
Machine structure:
1. Spout sorter 2.Pouch feeding system
3.Inserting and sealing system 4.Output system
Spout sorter system:
1.Chute 2.Vibrating disks
3.Lead rail
Pouch feeding system:
1.Pouch storage system Pneumatic sucker
Inserting and sealing system:
Inserting and sealing system:
1. Pouch inserting system 2.Heat sealing system
3. Clamping system
Output system:
1.Pouches (with spouts) output 2. Collection system
