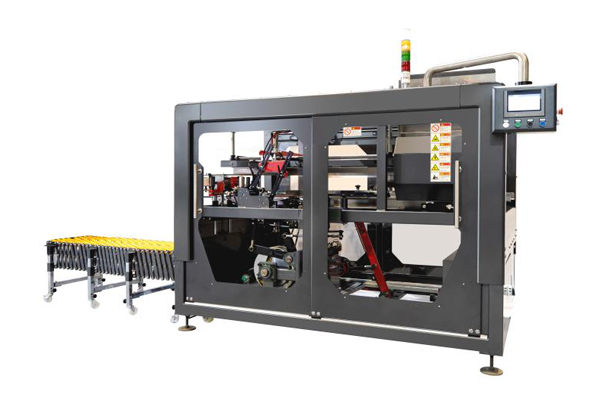

CF-30TX Case Erectors
Youngsun case erectors are the answer to virtually every case erecting requirement. Whether you need to erect 10 cases per minute or 60 cases per minute, Youngsun has the solution for you. Our case erectors are engineered and manufactured for durability and economical use under the most challenging production conditions and like every other Youngsun machine, our case erectors are backed by our industry-leading parts & service network that responds to customer needs 24-hours a day, 7-days a week.
| CF-30TX Case Erectors | |
| Model | CF-30TX |
| Power supply | 3P 380V 50HZ,1.5 kW |
| Air supply | 0.5 MPa～0.6 MPa |
| Air consumption | 30m3/h |
| Worktable height | 1060mm(Suitable for manual operation height) |
| Case erector method | Min:250*150*190mm, max:550*390*400mm |
| Working Speed | ≤28cases/min |
| carton size | Min:250*150*190mm, max:550*390*400mm |
| Tape | Bopp or draft paper tape |
| Current protection | IP54 |
| Environment condition | Humidity ≤98%， Temperature -10℃～40℃ |
| Machine weight | 1100kg |
| Machine size:LXWXH | 2903×1420×1932mm; |
| Note: In order to reduce the damage rate of cartons and improve the shaping case speed, it is recommended to use good quality cartons. | |
| configuration | PLC： Siemens |
| Touchscreen：Xinjie | |
| Frequency converter：Schneider | |
| Contactor：Schneider | |
| Circuit breaker：Schneider | |
| Button：Schneider | |
| Alarm light: Siemens | |
| Sensor:P+F | |
| Motor: Luson | |
