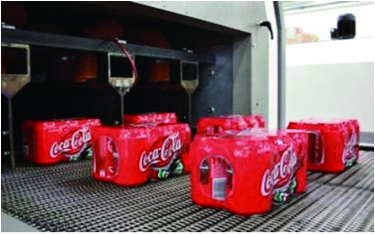

| YS-ZB-6II Shrink Wrapping Machine With Two Lane | |||||
| Parameter | YS-ZB-6III | YS-ZJ-06-IIH Shrink tunnel |
|||
| Direct-delivery film structure | L4.5m | ||||
| Speed | 250ml | 4×6 | ＜100 packs/min |
0-18m/min | |
| 500ml | 3×4 | ＜80 packs/min |
|||
| 1L | 2×3 | 120 packs/min |
|||
Combination form Bottle capacity Bottle dimension |
2×3 3×4(Max.8 feeding lanes) 0.25~5L Dia.50~120Height 90~300mm |
Tunnel mesh belt size: 710mm w |
|||
Tunne size: L3000 ×W1360× H990mm |
|||||
Temerature control scope≤5°C |
|||||
| Power supply | AC380V±10%/50Hz, 10.66kW (3P 5wires) |
AC380V±10%/50 Hz, 91.5kW (1.5kw 56 tubes) |
|||
| Machine Size | L8800xW1670xH2508 mm | L4550xW1570 xH2400 mm |
|||
| Working height | 1150+50mm | ||||
| Machine configuration | PLC: "Siemens" |
Touch screen :"Siemens" |
PLC: "Siemens" |
Air switch :"CHINT" |
|
ServoMotor /driver: "Schneiders" x6 |
Motor: "Nord"/" MEIWA" |
Motor:"MEIWA" | Mesh chain motor: ’Nord“/ ”MEIWA“ |
||
Button, Contactor and Relay: "Schneider" |
Transducer: "Schneider" /Danfoes |
Relay ,Button Contactor: :"Schneider" |
Temperature controller :"Omron" |
||
Proximity switch and photoelectricity switch：“SICK” |
Cirulation fan,cooling system fan:2-4 fans |
||||
Cylinder and pneumatic components :"SMC" |
Axial motor :0.1KW 2800R/min 250FZY6-D |
||||
 |
|||||
| Function: | Two lanes PE film shrink wrapping for bottles/cans | ||||
| Features: | Automatic,high speed,easy operation,run smoothly,economical and practical,two lanes work together |
||||
| YS-ZB-6II Shrink Wrapping Machine With Two Lane | |||||
| Parameter | YS-ZB-6II | YS-ZJ-06-IIH Shrink tunnel |
|||
| Longer shrink machine | L6.5m | ||||
| Speed | 500ml | 2×3 | 100 packs/min |
0-18m/min | |
| 1L | 2×3 | 80 packs/min |
|||
| 330ml | 2×3 | 130 packs/min |
|||
Combination form Bottle capacity Bottle dimension |
2×3 3×4(customer made) 0.25~5L Dia.50~120Height 90~300mm |
Tunnel mesh belt size: 1050mm w |
|||
Tunne size: L5000 ×W1560× H990mm |
|||||
Temerature control scope≤5°C |
|||||
| Power supply | AC380V±10%/50Hz, 10.66kW (3P 5wires) |
AC380V±10%/50 Hz, 140kW (1.5kw 88 tubes) |
|||
| Machine Size | L8800xW1670xH2508 mm | L6550xW1770 xH2400 mm |
|||
| Working height | 1150+50mm | ||||
| Machine configuration | PLC: "Siemens" |
Touch screen :"Siemens" |
PLC: "Siemens" |
Air switch :"CHINT" |
|
ServoMotor /driver: "Schneiders" x6 |
Motor: "Nord"/" MEIWA" |
Motor:"MEIWA" | Mesh chain motor: ’Nord“/ ”MEIWA“ |
||
Button, Contactor and Relay: "Schneider" |
Transducer: "Schneider" /Danfoes |
Relay ,Button Contactor: :"Schneider" |
Temperature controller :"Omron" |
||
Proximity switch and photoelectricity switch：“SICK” |
Cirulation fan,cooling system fan:4 fans |
||||
Cylinder and pneumatic components :"SMC" |
Axial motor :0.1KW 2800R/min 250FZY6-D |
||||
|
|||||
| Function: | Two lanes PE film shrink wrapping for bottles/cans | ||||
| Features: | Automatic,high speed,easy operation,run smoothly,economical and practical,two lanes work together with long shrink tunnel |
||||
| YS-ZB-6II Shrink Wrapping Machine With Two Lane | |||||
| Parameter | YS-ZB-6III | YS-ZJ-06-IIH Shrink tunnel |
|||
| Direct-delivery film structure | L4.5m | ||||
| Speed | 500ml | 3×3 | 100 packs/min |
0-18m/min | |
| 1L | 2×3 | 80 packs/min |
|||
| 330ml | 2×3 | 130 packs/min |
|||
Combination form Bottle capacity Bottle dimension |
2×3 3×4(Max.8 feeding lanes) 0.25~5L Dia.50~120Height 90~300mm |
Tunnel mesh belt size: 710mm w |
|||
Tunne size: L3000 ×W1360× H990mm |
|||||
Temerature control scope≤5°C |
|||||
| Power supply | AC380V±10%/50Hz, 15.32kW (3P 5wires) |
AC380V±10%/50 Hz, 91.5kW (1.5kw 56 tubes) |
|||
| Machine Size | L8800xW1670xH2508 mm | L4550xW1570 xH2400 mm |
|||
| Working height | 1150+50mm | ||||
| Machine configuration | PLC: "Siemens" |
Touch screen :"Siemens" |
PLC: "Siemens" |
Air switch :"CHINT" |
|
ServoMotor /driver: "Schneiders" x6 |
Motor: "Nord"/" MEIWA" |
Motor:"MEIWA" | Mesh chain motor: ’Nord“/ ”MEIWA“ |
||
Button, Contactor and Relay: "Schneider" |
Transducer: "Schneider" /Danfoes |
Relay ,Button Contactor: :"Schneider" |
Temperature controller :"Omron" |
||
Proximity switch and photoelectricity switch：“SICK” |
Cirulation fan,cooling system fan:2-4 fans |
||||
Cylinder and pneumatic components :"SMC" |
Axial motor :0.1KW 2800R/min 250FZY6-D |
||||
|
|||||
| Function: | Two lanes PE film shrink wrapping for bottles/cans | ||||
| Features: | Automatic,high speed,easy operation,run smoothly,economical and practical,two lanes work together with pre-delivery structure, |
||||
