Vacuum Chamber machines or Vacuum packing machines are used to evacuate the air around perishable goods such as food products like cheese and meat whose extension of shelf life is desired. Vacuum Chamber machines or vacuum sealers remove the air from the package at the same time sealing it, delivering the ultimate in protection while extending the distribution life and maintaining product integrity.

Vacuum sealers or Vacuum chamber machines commonly use vacuum bags or barrier pouches. These barrier bags provide a barrier against the atmosphere and moisture. The bags are placed in the chamber, the desired amount of air is extracted from the vacuum bag and then sealed. All of Get packed Vacuum Chamber machines are made from stainless steel and are available in a variety of sizes and configurations such as the option of gas flushing kits.

vacuum packaging machine Total:24 products

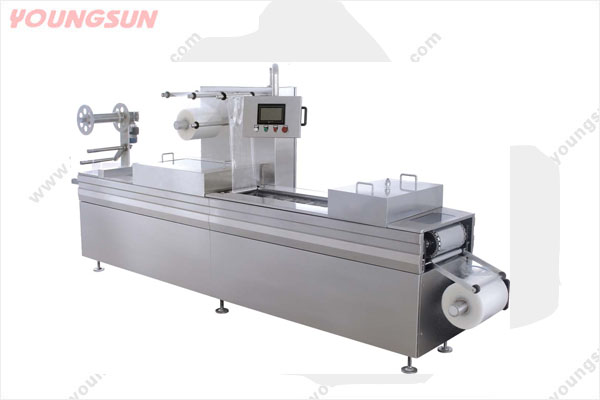

YS-ZDZK-320R
Continuous stretch Vacuum Machine(soft film)
Model YS-ZDZK-320R
Upper film width 293mm
Lower film width 322mm
Upper film thickness 0.08-0.12mm
Lower film thickness 01.2-0.3mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 350mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 12Kw
Heating power 8Kw
Compressed air pressure ≥ 0.6Mpa
Air consumption 0.8-1m³/min
Vacuum capability 100m³/h
Vacuum degree ≤200Pa
Power 380V,50HZ,3P5H
Machine size 4500×1030×1900
Weight 1500Kg

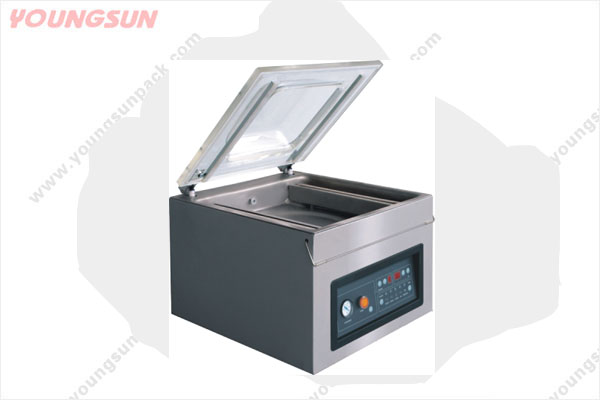

YS-ZS-400S
Table style vacuum machine
Model YS-ZS-400s
Vacuum capability 20m³/h
Work cycle15-40sec/cycle
Heating seal bar QTY 2
Heating seal bar size 400×8mm
Power lP 220V 50/60Hz 1 .0KW (other voltage optional)
Machine size 500 x 530 x 490 mm
Package size 540×550×650mm
Net Weight 60Kg
Gross weight 70Kg
Options 1.gas-filling function
imges
Inquiry this product
YS-ZS-420
Table style vacuum machine
Model YS-ZS-420
Vacuum capability 20m³/h
Work cycle15-40sec/cycle
Heating seal bar QTY 1
Heating seal bar size 420×8mm
Power lP 220V 50/60Hz 1 .0KW (other voltage optional)
Machine size 500 x 530 x 490 mm
Package size 540×550×650mm
Net Weight 60Kg
Gross weight 70Kg
Options 1.gas-filling function
imges
Inquiry this product
YS-ZS-300
Table style vacuum machine
Model YS-ZS-300
Vacuum capability 10m³/h
Work cycle 15-30sec/cycle
Heating seal bar QTY 1
Heating seal bar size 300×10mm
Power lP 220V 50/60Hz 0.37KW (other voltage optional)
Machine size 370 x 480 x 500 mm
Package size 410×500×650mm
Net Weight 45Kg
Gross weight 53Kg
Options 1.XDZ-20 vacuum pump 2.gas-filling function
main electrical configuration CHINT breaker
SCHNIDER contactor
SIMENSE button
RENEW microswitch
imges
Inquiry this product
YS-DQ-420(400S)
Floorl type vacuum machine
Model YS-DQ-420 YS-DQ-400S
Vacuum capability
20m³/h
Work cycle
15-40sec/cycle
Heating seal bar QTY 1 2
Heating seal bar size 420×8mm 400×8mm
Power

lP 220V 50/60Hz 1 .0KW(other voltage optional)

Machine size
500 x 530 x 1000 mm
Package size
540×550×1150mm
Net Weight
80Kg
Gross weight
100Kg
Options
1.gas-filling function
main electrical configuration CHINT breaker
SCHNIDER contactor
SIMENSE button
RENEW microswitch
imges
Inquiry this product
YS-DQ-500
Floor type vacuum machine
Model YS-DQ-500
Vacuum capability 20m³/h
Work cycle 40-60sec/cycle
Heating seal bar QTY 1
Heating seal bar size 500×8mm
Power

lP 220V 50/60Hz 1 .0KW (other voltage optional)

Machine size 600 x 635 x 900 mm
Package size 620×680×1050mm
Net Weight 90Kg
Gross weight 110Kg
Options 1.gas-filling function
  2.Aluminun cover+tempered glass
3.XDZ-045 vacuum pump
imges
Inquiry this product

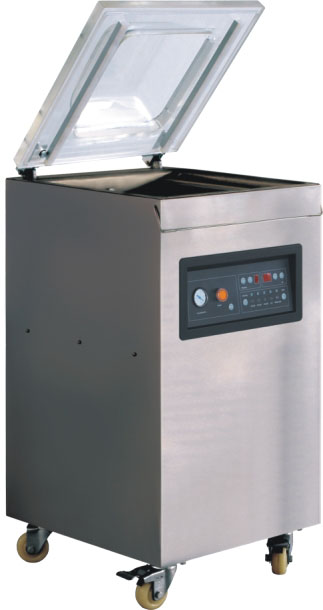

YS-DQ-500S
Floor type vacuum machine
Model YS-DQ-500S
Vacuum capability 20m³/h
Work cycle 25-50sec/cycle
Heating seal bar QTY 2
Heating seal bar size 500×8mm
Power

lP 220V 50/60Hz 1 .0KW (other voltage optional)

Machine size 600 x 635 x 900 mm
Package size 620×680×1050mm
Net Weight 90Kg
Gross weight 110Kg
Options 1.gas-filling function
2.Aluminum cover+tempered glass
3.XDZ-045 vacumm pump
main electrical configuration CHINT breaker
SCHNIDER contactor
SIMENSE button
RENEW microswitch
imges
Inquiry this product
YS-DQ-600/600S
Floor type vacuum machine
Model YS-DQ-600 YS-DQ-600S
Vacuum capability
20m³/h
Work cycle 40-60sec/cycle 35-50sec/cycle
Heating seal bar QTY 1 2
Heating seal bar size
600×8mm
Power

lP 220V 50/60Hz 1 .0KW(other voltage optional)

Machine size
740 x 740 x 900 mm
Package size
780×780×1050mm
Net Weight
130kg
Gross weight
150Kg
Options 1.gas-filling function
2.Aluminum cover+tempered glass
3.XDZ-045 vacumm pump
imges
Inquiry this product

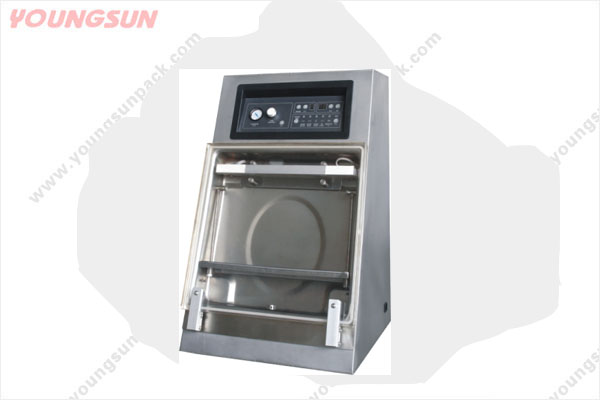

YS-DZ-420
Vertical bag vacuum machine
Model YS-DZ-420
Vacuum capability 20m³/h
Work cycle 15-40sec/cycle
Heating seal bar QTY 1
Heating seal bar size 420×8mm
Power lP 220V 50Hz 1 .0KW (other voltage optional)
Machine size 495 x 530 x 800 mm
Package size 540×550×950mm
Net Weight 70Kg
Gross weight 90Kg
main electrical configuration CHINT breaker
SCHNIDER contactor
SIMENSE button
RENEW microswitch
imges
Inquiry this product

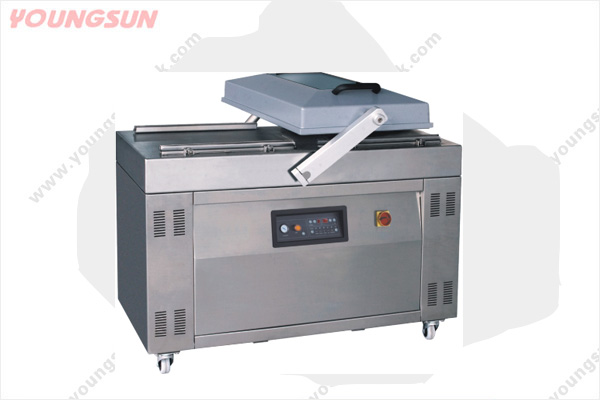

YS-SQ-550SP
Double-chamber vacuum machine
Model YS-SQ-500SP
Vacuum capability 40m³/h
Work cycle 20-40sec/cycle
Heating seal bar QTY 4
Heating seal bar size 550×10mm
Power

380V/3ph/50hz 2.0kw(other voltage optional)

Machine size 1310 x 800 x 1150 mm
Package size 1360×850×1200mm
Net Weight 200Kg
Gross weight 240Kg
Options 1.Stainless cover
imges
Inquiry this product

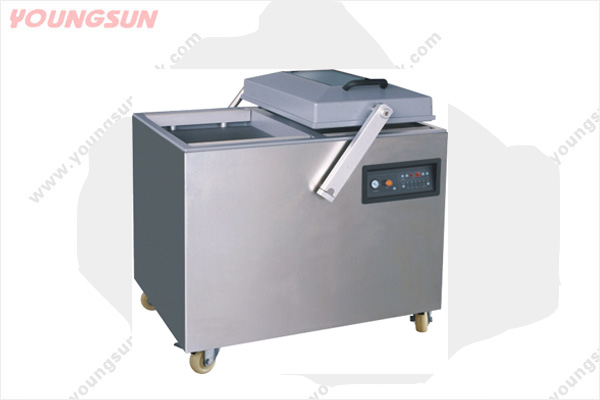

YS-SQ-600SA
Double-chamber vacuum machine
Model YS-SQ-600SA
Vacuum capability 63m³/h
Work cycle 20-40sec/cycle
Heating seal bar QTY 4
Heating seal bar size 600×10mm
Power 380V/3ph/50hz 2.0kw (other voltage optional)
Machine size 1310 x 800 x 1150 mm
Package size 1360×850×1280mm
Net Weight 200Kg
Gross weight 240Kg
imges
YS-SQ-600SA II
Double-chamber vacuum machine
Model YS-SQ-600SA II
Vacuum capability 63m³/h
Work cycle 20-40sec/cycle
Heating seal bar QTY 4
Heating seal bar size 600×10mm
Power

380V/3ph/50hz 2.0kw (other voltage optional)

Machine size 1425 x 755 x 932 mm
Package size 1480×850×1060mm
Net Weight 280Kg
Gross weight 320Kg
main electrical configuration SCHNIDER breaker
SCHNIDER contactor
SIMENSE button
RENEW microswitch
imges

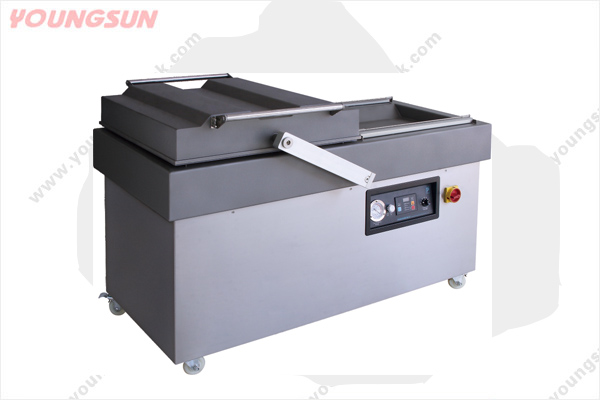

YS-SQ-600SP II
Double-chamber vacuum machine
Model YS-SQ-600SP II
Vacuum capability 63m³/h
Work cycle 20-40sec/cycle
Heating seal bar QTY 4
Heating seal bar size 600×10mm
Power 380V/3ph/50hz 2.0kw (other voltage optional)
Machine size 1425 x 755 x 932 mm
Package size 1480×850×1060mm
Net Weight 280Kg
Gross weight 320Kg
imges

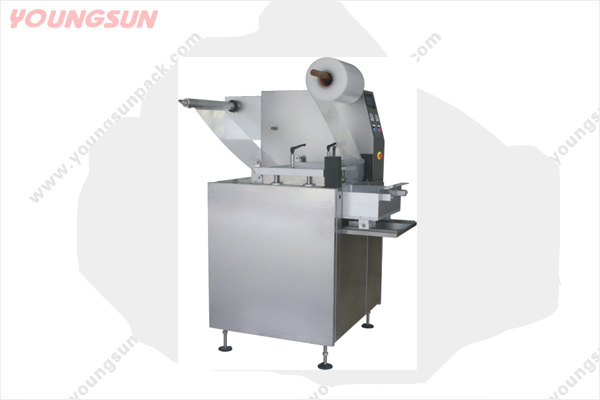

YS-SDZK-400
Manual tray sealer
Model YS-SDZK-400
Power supply 380v,50HZ,3P5H,4kw
Applicable product sizeL<360, W<265, H<100mm
Working speed

120-240 cycle/hour

(It is related to the size of mould)

Pneumatic pressure ≥ 0.6Mpa
Applicable seal film PP film,aluminum plastic film
Max diameter of film roll 250mm
Film thickness 0.06-0.15mm
Applicable tray PP,PVC,PET,PS
Machine size L1100 x W900 x H1600mm
Net weigh 200kg

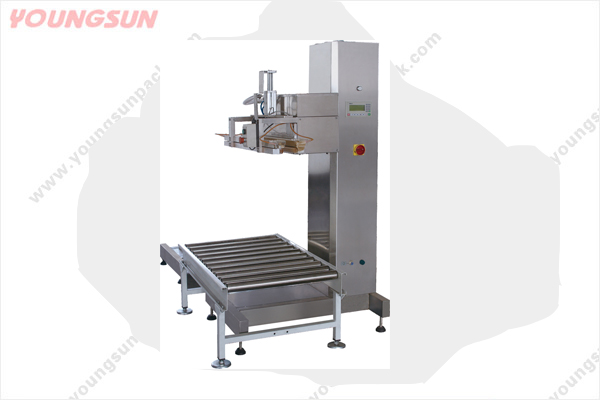

YS-ZKW-850
Outer pump vacuum packer
Model YS-ZKW-850
Vacuum capability 20m³/h
Work cycle 40-60sec/cycle
Heating seal bar QTY 1
Heating seal bar size 850×10mm
Power

lP 220V 50/60Hz 1 .0K(other voltage optional)

Machine size 1100 x 900x 1700 mm
Package size 1100×1000×1800mm
Net Weight 132Kg
Gross weight 160Kg
main electrical configuration SIMENSE PLC
SCHNIDER relay
Pneu-matic component
AIRTAC/FESTO
YS-LXFH-463
Continuous tray sealer
Model YS-LXZK-463
Power supply 380v,50HZ,3P5H,4kw
Applicable product size L<360, W<265, H<100mm
Working speed 240-400 cycle/hour
Pneumatic pressure ≥ 0.6Mpa
Applicable seal film PP film,aluminum plastic film
Max diameter of film roll 250mm
Film thickness 0.06-0.15mm
Applicable tray PP,PVC,PET,PS
Machine size L2300 x W850 x H1750mm
Net weigh 300kg
YS-ZDZK-320Y
Continuous stretch hard tray packer
Model YS-ZDZK-320
Upper film width 293mm
Lower film width 322mm
Upper film thickness 0.08-0.15mm
Lower film thickness 0.2-0.6mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 350mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 12Kw
Heating power 8Kw
Compressed air pressure > 0.6Mpa
Air consumption 0.8-1m³/min
Vacuum capability 100m³/h
Power 380V,50HZ,3P5H
Machine size 4500×1030×1900mm
Weight 1500Kg
YS-ZDZK-420Y
Continuous stretch hard tray packer
Model YS-ZDZK-420Y
Upper film width 393mm
Lower film width 422mm
Upper film thickness 0.08-0.15mm
Lower film thickness 0.2-0.6mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 350mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 15Kw
Heating power 10Kw
Compressed air pressure > 0.6Mpa
Air consumption 1-1.2m³/min
Vacuum capability 100-160m³/h
Power 380V,50HZ,3P5H
Machine size 4900×1130×1900mm
Weight 1800Kg
YS-ZDZK-520Y
Continuous stretch hard tray packer
Model YS-ZDZK-520Y
Upper film width 493mm
Lower film width 522mm
Upper film thickness 0.08-0.15mm
Lower film thickness 0.2-0.6mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 350mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 18Kw
Heating power 12Kw
Compressed air pressure > 0.6Mpa
Air consumption 1-1.2m³/min
Vacuum capability 100-160m³/h
Power 380V,50HZ,3P5H
Machine size 5200×1230×1900mm
Weight 2100Kg

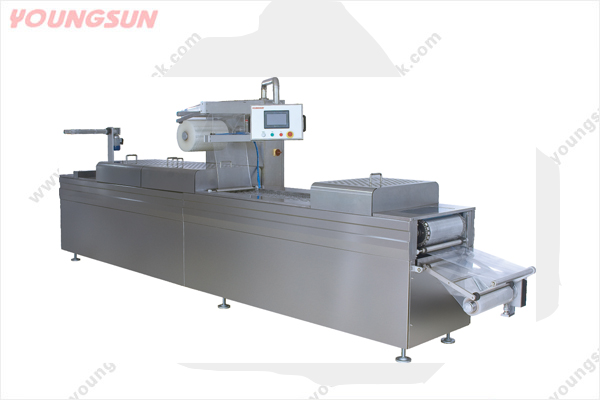

YS-ZDZK-420R
Continuous stretch Vacuum Machine(soft film)
Model YS-ZDZK-420R
Upper film width 393mm
Lower film width 422mm
Upper film thickness 0.08-0.12mm
Lower film thickness 0.12-0.3mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 350mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 15Kw
Heating power 10Kw
Compressed air pressure ≥ 0.6Mpa
Air consumption 1-1.2m³/min
Vacuum capability 160m³/h
Vacuum degree ≤200Pa
Power 380V,50HZ,3P5H
Machine size 4900×1130×1900mm
Weight 1800Kg
YS-ZDZK-520R
Continuous stretch Vacuum Machine(soft film)
Model YS-ZDZK-520R
Upper film width 493mm
Lower film width 522mm
Upper film thickness 0.08-0.12mm
Lower film thickness 0.12-0.30mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 350mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 18Kw
Heating power 12Kw
Compressed air pressure ≥ 0.6Mpa
Air consumption 1.2-1.5m³/min
Vacuum capability 160-200m³/h
Vacuum degree ≤200Pa
Power 380V,50HZ,3P5H
Machine size 5200×1230×1900mm
Weight 2100Kg
YS-XCXZK-320
Lower forming Continuous stretch Vacuum Machine
Model YS-XCXZK-320
Upper film width 293mm
Lower film width 322mm
Upper film thickness 0.08-0.12mm
Lower film thickness 0.12-0.3mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 300mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 12Kw
Heating power 7Kw
Compressed air pressure ≥ 0.4Mpa
Air consumption 0.3m³/min
Vacuum capability 100m³/h
Vacuum degree ≤200Pa
Power 380V,50HZ,3P5H
Machine size 2700×1030×1900mm
Weight 1200Kg
YS-XCXZK-420
Lower forming Continuous stretch Vacuum Machine
Model YS-XCXZK-420
Upper film width 393mm
Lower film width 422mm
Upper film thickness 0.08-0.12mm
Lower film thickness 0.12-0.3mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 300mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 14Kw
Heating power 8Kw
Compressed air pressure ≥ 0.4Mpa
Air consumption 0.3m³/min
Vacuum capability 100-160m³/h
Vacuum degree ≤200Pa
Power 380V,50HZ,3P5H
Machine size 2700×1130×1900mm
Weight 1500Kg
YS-XCXZK-520
Lower forming Continuous stretch Vacuum Machine
Model YS-XCXZK-520
Upper film width 493mm
Lower film width 522mm
Upper film thickness 0.08-0.12mm
Lower film thickness 0.12-0.3mm
Upper film roll outer dia. 250mm
Lower film roll outer dia. 300mm
upper film roll core shaft dia. 76mm(3")
lower film roll core shaft dia. 76mm(3")
working speed 200-400cycle/h
Total power 16Kw
Heating power 8Kw
Compressed air pressure ≥ 0.4Mpa
Air consumption 0.3m³/min
Vacuum capability 100-160m³/h
Vacuum degree ≤200Pa
Power 380V,50HZ,3P5H
Machine size 2700×1230×1900mm
Weight 1800Kg
Quick Links: Packing Machine  Case Erectors  Labeling Machine  Shrink Wrapper  Carton Sealer  Strapping Machine  Strapping Tool  Palletizer  Wrapping Machine  Carton Packer  Packing line  PP Straps  LLDPE Stretch Film Conveyor   Filling and Capping Machine   Vacuum Packaging Machine  Robot  Vertical Packaging Machine
